Assembly System siMetrix 46
Angle Connector CN 46
Application

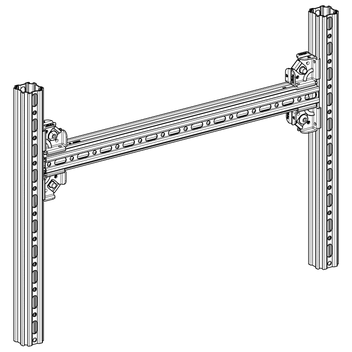

For creating crossbars or cantilevers on the Profile PRO 46.
Installation

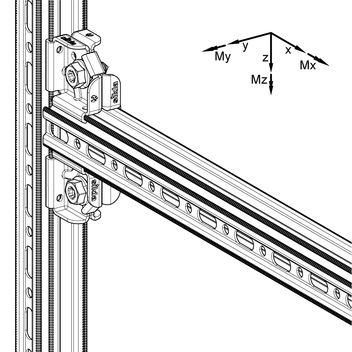

Press the connector onto both adjoining profiles and secure by tightening the screw.
Depending on the load, one or two brackets can be used per connection. For cantilevers, connectors must always be used in pairs.
Technical Data

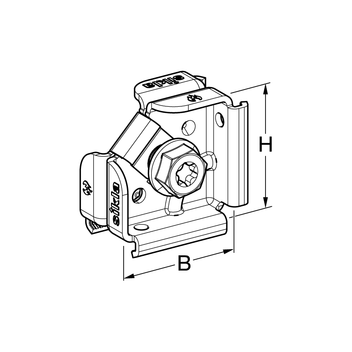

Type | H [mm] | B [mm] | Screw |
---|---|---|---|
CN 46 | 50 | 50 | M10 |
Type | Vx,zul [kN] | ± Vy,zul [kN] | ± Vz,zul [kN] | My,zul [kNm] | - My,zul [kNm] | ± Mz,zul [kNm] |
---|---|---|---|---|---|---|
CN 46 (one-sided) | 0,72 | 0,83 | 0,72 | 0,12 | 0,09 | 0,02 |
CN 46 (in pairs) | 1,22 | 2,62 | 1,49 | 0,22 | 0,22 | 0,09 |
Required tool: | T50 Bit or 17 mm (AF) Socket Bit |
Tightening torque: | 30 Nm |
Material: | Steel, HCP |
Approvals / Conformity
| This product has been awarded the RAL quality mark "Pipe Supports" and is subject to continuous external monitoring according to RAL GZ-655. |
