Application

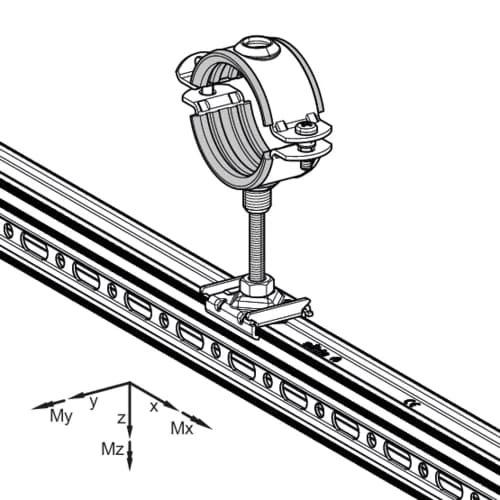

Quick assembly system for attaching pipe clamps and other components to the siMetrix Profile PRO 46. It is self-retaining thanks to the shape, but can be easily moved by hand. Compatible with Pressix Rods PNS, threaded rods or other connecting elements.

Scope of delivery

Block completely pre-assembled.

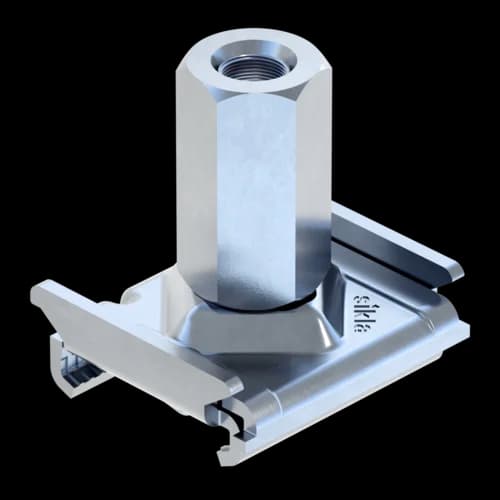

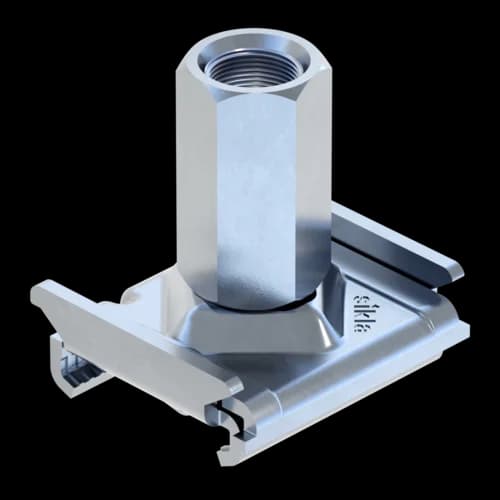

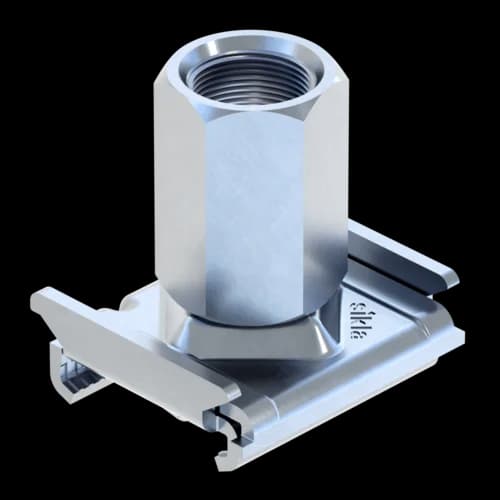

Types M12, M16 und 1/2" pre-assaembled with adapter.

Installation

Snap the block onto the profile, then tighten the connecting element with a lock nut. To disassemble, loosen the lock nut and press on the shoulder (highest point) of the block upper part and pull it off the profile.

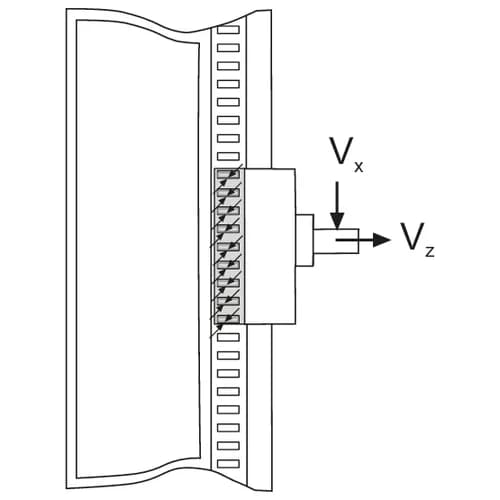

Technical Data

Type
± Vx,perm. *
[kN]
± Vy,perm. *
[kN]
- Vz,perm.
[kN]
≤ M8
- Vz,perm.
[kN]
≥ M10
PBH 46 0.55 2.54 4.0 4.33

* Load direction not RAL-tested

Tightening torque:
15 Nm
Material:
Steel, HCP

Approvals / Conformity



This product has been awarded the RAL quality mark "Pipe Supports" and is subject to continuous external monitoring according to RAL GZ-655.

* = no RAL quality label

TypeW
[kg]
Quantity
[pack]
Part
number

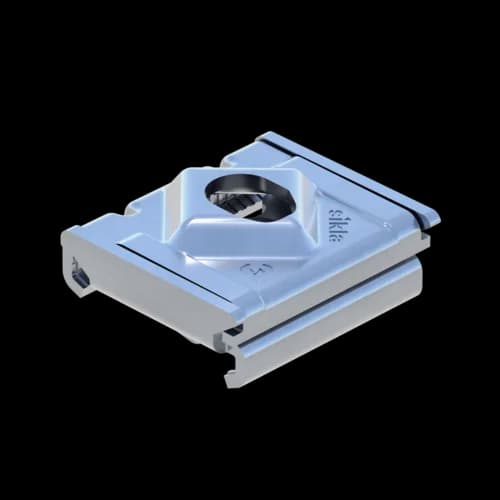

M6 *0.0925 803546
M80.0925 803547
M100.0925 803548
M120.1725 803549
M160.1525 803550
1/2"0.1925 803551
