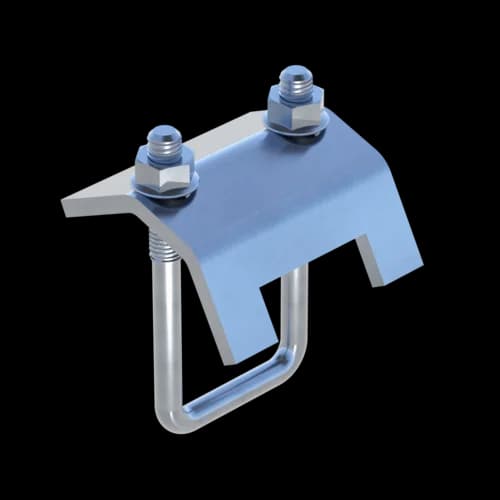

Assembly System siMetrix 46
U-Holder SB 46
Application
Connecting element for fastening the Profile PRO 46 to steel beams facilitating perpendicular of cantilever connection.
Scope of delivery
Holder with thread M10
Plate
2 Hexagon flange nuts M10

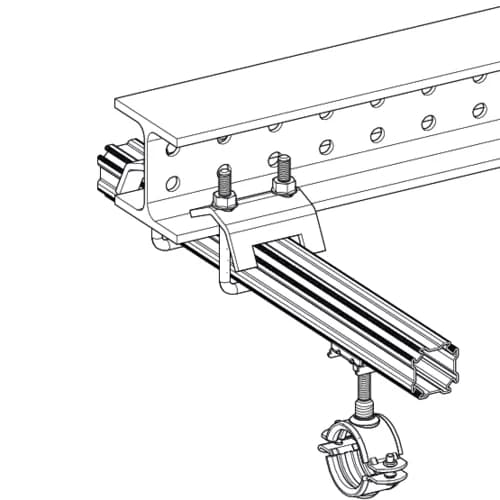

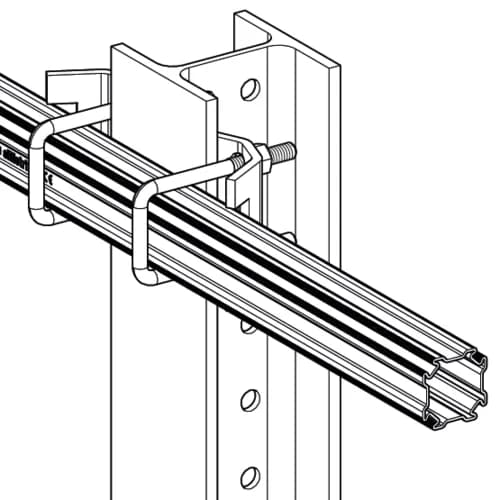

Installation
U-Holder to be used in pairs.
Suitable for beam flange thicknesses of 1 - 30 mm.
Technical Data
| Type | Thread | Tightening torque [Nm] | Fz per U-Holder [kN] | Fy [kN] | My [kNm] | Mz [kNm] |
|---|---|---|---|---|---|---|
| SB 46 M10 | M10 | 20 | 6,26 | * | * | * |
* Please check dimensions and suitability by means of the siMetrix user guideline for the permissible lateral forces and bending moments.
| Material: | Steel, property class 8.8, HCP |
