Pressix CC 41 - Assembly System

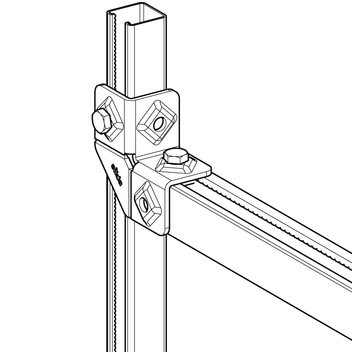

Angle Connector EV CC 41-1

Application

Pre-assembled connecting element for frame structures, optimised for linking channels of the 41 series at an angle of 90°. Preferably used in combination with 41/41 square channels. The adjustment for the channel opening could still be chosen.

  • Fast-Technique for 90° joints of Channel System 41.
  • Locks automatically when being put in place and supports its own weight.
  • Secure, form-locking, non-positive connection. Serrated Channel Nut with Hexagon Bolt M10.
  • Ideal shaping for high stiffness.
  • The proven Sikla rhomb guarantees a secure torque and preload force.

Scope of delivery

With Speed Nut and Hexagon Bolt SKT (supplied loose).

Installation

To be used in pairs.

Technical Data

Max. perm. working load:
5.0 kN centre load per crossbar fixed with 2 Angle Connectors EV CC 41-1
Tightening torque:
40 Nm
Material:
Steel, electro-galvanised
TypeW
[kg]
Quantity
[pack]
Part
number
EV CC 41-10.3825 117338
