Pressix CC 41 - Assembly System

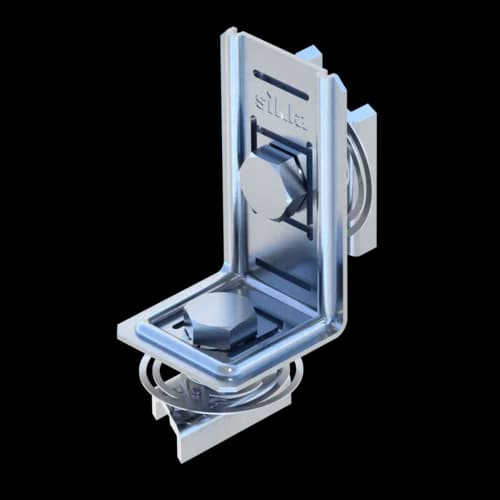

Angle Connector CN CC 41-90°
![](/sixcms/media.php/443/thumbnails/1326_pressix_cc_90g.tif.45724.png)
![](/sixcms/media.php/443/thumbnails/1326_pressix_cc_mont01.tif.45726.png)
![](/sixcms/media.php/443/thumbnails/1326_pressix_cc_mont03.tif.45727.png)
![](/sixcms/media.php/443/thumbnails/1326_pressix_cc_anw02.2588.tif.45725.png)
Application

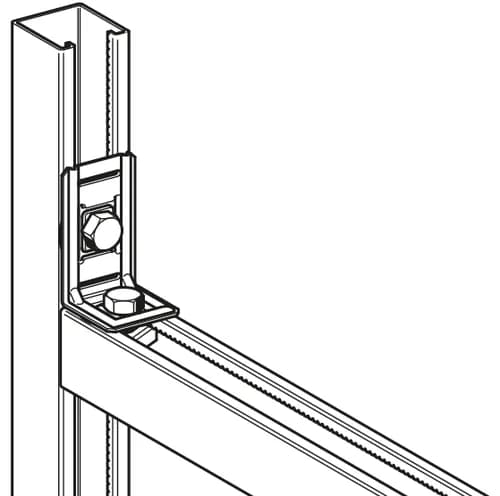

Pre-assembled connecting element especially for frame structures made of channels.

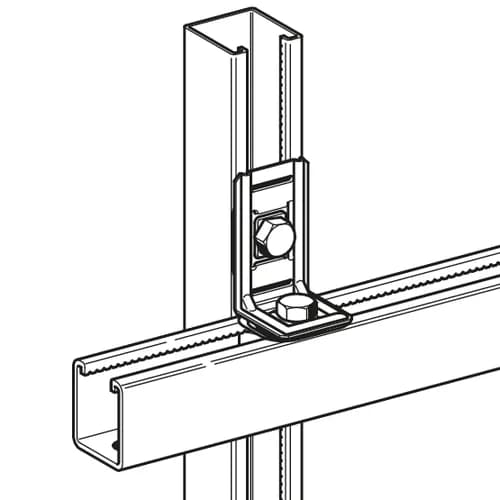

- High-speed assembly system for 90° connection of Channels MS 41.

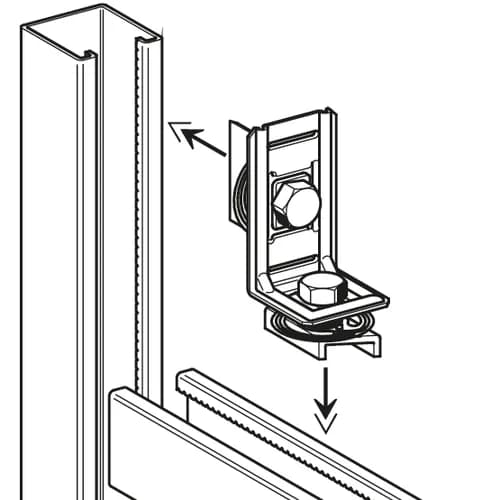

- Locks automatically by pushing down the bolt head and at the same time supports its own weight.
- Secure, form-locking, non-positive connection. Serrated speed nut with clamping bolt M10. Ideal shaping for high stiffness.
Technical Data
Working load: | F = 4.0 kN as axial load per crossbar with 2 CC Angle Connectors 90° |
Torque: | 40 Nm |
Material: | Steel, pre-galvanised according to DIN EN 10346 / electro-galvanised |
