Assembly System siMetrix 46

Slide Support GA 41-46

Application

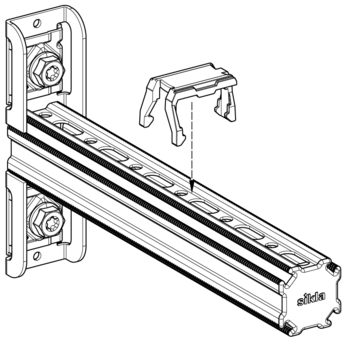

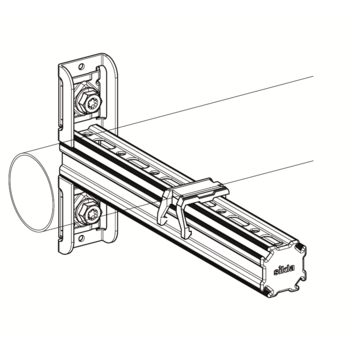

Sound-absorbing and insulating pipe support surface protection to be used in conjunction with the Profile PRO 46 and in combination with U Bolts.

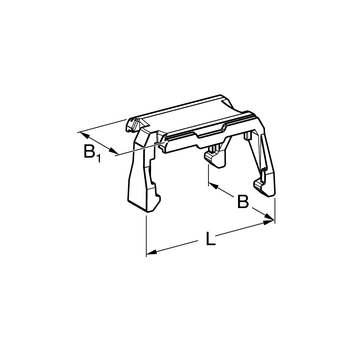

Technical Data

Type
B
[mm]
B1
[mm]
L
[mm]
GA 41-46 42 18,5 52

Material:
Polyamide PA 6.0 GF 30 (glass-fibre reinforced)
Temperature range:
-20° up to +130° C
TypeW
[kg]
Quantity
[pack]
Part
number
GA 41-460.0150 803871
