Assembly System siMetrix 46

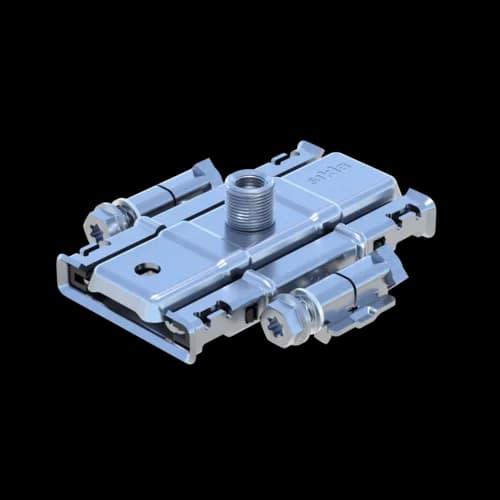

Slide Set GS H3G-PL 46
Application

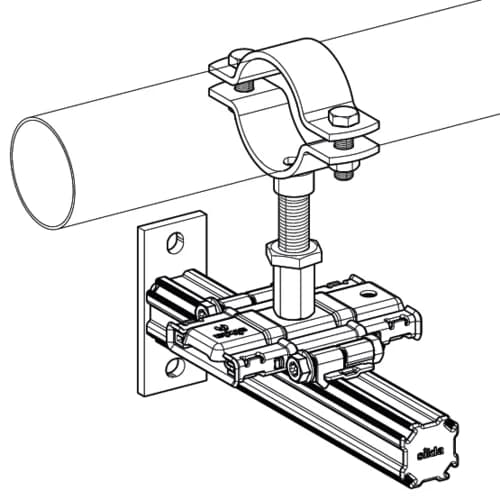

Slide Set for single and double guided brackets on siMetrix Profile PRO 46, or directly to the structure. Connection options vary on the load, using either the 3G thread: M10, M16 and 1/2".
Installation
For supported installations from DN 100 upwards, a locking nut must be mounted on the 3G triple thread nut for both Slide Sets.
Technical Data
| Type | L [mm] | H [mm] | L1 [mm] | B [mm] | B1 [mm] | Mi | Mi,1 | Ma |
|---|---|---|---|---|---|---|---|---|
| H3G-PL 46 | 155 | 43 | - | 138 | 109 | M10 | M16 | 1/2" |

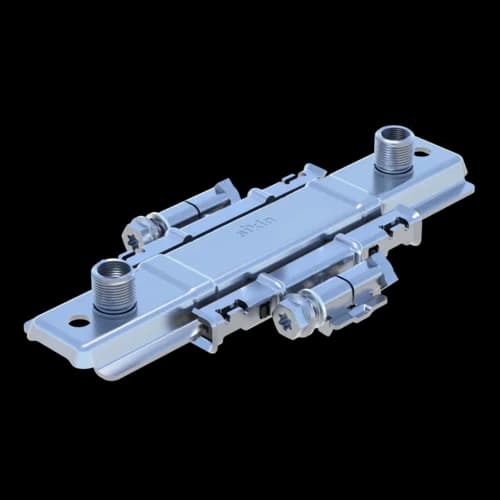

| H3G2-PL 46 | 280 | 43 | 200 | 138 | 109 | M10 | M16 | 1/2" |
| Typ | Vz,perm. [kN] | - Vz,perm. [kN] | ± Mx,perm. [kNm] |
|---|---|---|---|
| GS H3G-PL 46 | 11,04 | 3,45 | 0,13 |
| GS H3G2-PL 46 | 11,04 | 3,45 | 0,13 |
| Permanent temperature range Slide Set: | 130°C |
| Static friction coefficient µ0: | 0,07 |
| Sliding friction coefficient µ: | 0,07 |
| Tightening torque siMetrix screws: | 15 Nm |
| Material: | |
| Slide element and retaining plate: | Steel, HCP |
| Slide bar: | Polyamide (glass-fibre reinforced), MoS2 coated |
| Type | max. lever arm [mm] | max. glide path s [mm] |
|---|---|---|
| H3G-PL 46 | 500 | 100 |
| H3G2-PL 46 | 500 | 140 |
