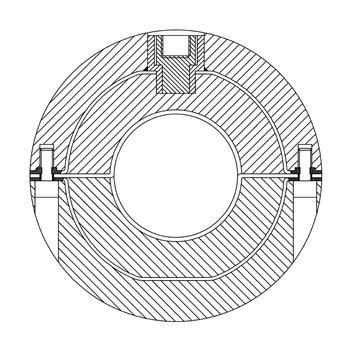

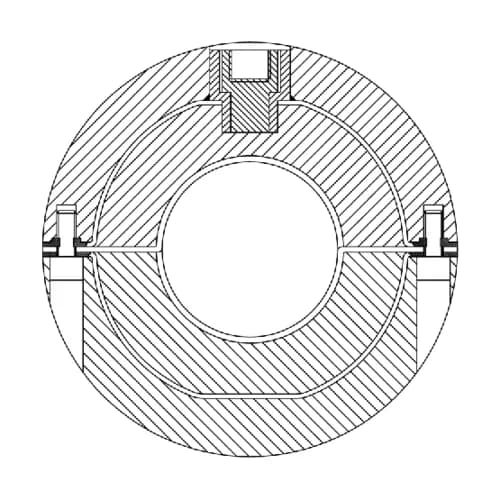

Chilled Water Clamp RB

Application

Insulated pipe clamp made of PUR-foam for chiller plants and cool water systems.

Scope of delivery

Two-piece polyurethane-integral foam with steel holders with inside connection ears (laid in foam).

Installation

Screw in upper part and position the pipe.
Tighten closely lower part with displaced caoutchouc part to upper part (PUR part to caoutchouc, caoutchouc part to PUR).

Advantage: Sealant is not longer required!

Technical Data

Insulation core:
PUR-foam (250 kg/m3 , B2)
Pressure resistance:
For static load: 4,3 N/mm2 at 23° C
Diffusion resistance:
µ = 1200
λ = 0.045 W/mK at 0° C
Fire resistance:
EL (DIN EN 13501-1)
Temperature range:
From - 50° C up to + 105° C
Insertion loss:
Up to 16 dB(A)

Type
Max. load
[kN]
15/30 0.27
17/30 0.27
18/30 0.28
21/30 0.33
22/30 0.34
27/30 0.42
28/30 0.44
33/30 0.53
35/30 0.55
42/30 0.66
48/30 0.75
54/30 0.87
57/30 0.89
60/30 1.20
76/30 1.48
89/30 1.73
114/40 2.67
133/40 3.11
139/40 3.27
159/40 3.72
168/40 4.40
204/60 5.20
219/60 5.26

* = delivery time on demand

TypePipe
Da [mm]
Insulation
thickness
[mm]
Clamp
width
[mm]
Thread
connection
W
[kg]
Quantity
[pack]
Part
number
15/30 *1536401/2"/M10/M80.1910 117484
17/30 *1735401/2"/M10/M80.1910 193310
18/30 *1835401/2"/M10/M80.1910 193327
21/302133401/2"/M10/M80.1910 168528
22/302233401/2"/M10/M80.1910 193334
27/302731401/2"/M10/M80.1910 168537
28/302830401/2"/M10/M80.1910 193341
33/303332401/2"/M10/M80.2010 168546
35/303531401/2"/M10/M80.2110 193358
42/304231401/2"/M10/M80.2210 168555
48/304830401/2"/M10/M80.2210 168564
54/305432401/2"/M10/M80.2410 193365
57/30 *5730401/2"/M10/M80.2510 193372
60/306030501/2"/M10/M80.2710 168582
76/307630501/2"/M10/M80.4110 168607
89/308931501/2"/M10/M80.465 168616
114/4011441601/2"/M10/M81.035 193419
133/4013343601/2"/M10/M81.155 193426
139/4013940601/2"/M10/M81.155 193433
159/4015940601/2"/M121.284 193440
168/4016840601/2"/M121.324 193457
204/60204681003/4"/M163.301 193464
219/60219611003/4"/M163.231 193471
