Pipe Clamps and Accessories

Chilled Water Clamp CMP

Application

Chilled Water Clamp with insulation cores of various thickness for fixing cold-water pipeline systems and chilled water installations. Prevents temperature bridging and condensation between pipe and pipe clamp. For steel pipes from outside dia. 114 mm on, we recommend the use of a Load Plate.

Scope of delivery

Insulation insert: Two interlocking PUR segments joined by outer aluminium foil.
Pipe Clamp: Two-piece Sikla Pipe Clamp with multi-thread connecting nut. See the table below for direct connection options. For adapter/ reducer-based connection clamp and insulation insert are delivered loose.

Technical Data

ø D pipe [mm]
Max. recommended
distance between
2 supports [m]*
Suitable Load Plate
21
1.50
-
27, 34
2.00
-
42, 48, 60
2.50
-
76, 89, 102, 108
3.00
-
114, 133, 140
4.00
CMP/PR 240
159, 168, 219
4.00
CMP/PR 340
273
4.00
CMP/PR 400

*
The values indicated are based on the use of the relevant Load Plate from outside dia. 114 mm on.

Insulation core:
PUR, specific gravity 80 kg/m³
Vapour shield:
Aluminium foil
Temperature range:
0°C up to +105°C
Thermal conductivity:
λ = 0.024 - 0.026 W/(mk) at 0°C

λ = 0.038 W(mk) at 10°C

λ = 0.040 W(mk) at 10°C
Fire resistance:
Insulation and vapour shield: material category B2
Clamp material:
Steel, electro galvanised

In case you require dimensions or material other than those listed, please contact us.

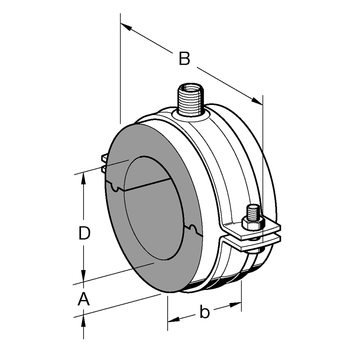

TypePipe ø
D [mm]
Thread
connection
b
[mm]
B
[mm]
W
[kg]
Quantity
[pack]
Part
number
CMP 21/2521M8/M1075112.00.1125 186896
CMP 27/2527M8/M1075125.00.1825 186905
CMP 34/2534M8/M1075134.00.1925 186914
CMP 42/2542M8/M1075141.00.2125 186923
CMP 49/2549M8/M1075146.50.2125 186932
CMP 60/2560M8/M1075159.50.2425 186941
CMP 76/2576M8/M1075173.00.2725 186959
CMP 89/2589M12/M16/1/2"75207.00.8410 186968
CMP 102/25102M12/M16/1/2"75222.00.8410 186977
CMP 108/25108M12/M16/1/2"75232.00.9410 186986
CMP 114/25114M12/M16/1/2"75232.00.9510 186995
CMP 133/25133M12/M16/1/2"100263.01.0910 187004
CMP 140/25140M12/M16/1/2"100273.01.1610 187013
CMP 159/25159M12/M16/1/2"100295.01.2410 187022
CMP 168/25168M12/M16/1/2"100304.01.3610 187031
CMP 219/25219M12/M16/1/2"100352.01.4910 187040
CMP 273/25273M16100440.02.8210 187049

CMP 21/3021M8/M1075125.00.1225 187058
CMP 27/3027M8/M1075134.00.2025 187067
CMP 34/3034M8/M1075141.00.2125 187076
CMP 42/3042M8/M1075151.00.2325 187085
CMP 49/3049M8/M1075151.00.2325 187094
CMP 60/3060M8/M1075173.00.2725 187103
CMP 76/3076M12/M16/1/2"75207.00.8410 187121
CMP 89/3089M12/M16/1/2"75222.00.8510 187130
CMP 108/30108M12/M16/1/2"75240.00.9610 187148
CMP 114/30114M12/M16/1/2"75263.01.0710 187157
CMP 133/30133M12/M16/1/2"100273.01.1810 187166
CMP 140/30140M12/M16/1/2"100284.01.2510 187175
CMP 159/30159M12/M16/1/2"100304.01.3810 187184
CMP 168/30168M12/M16/1/2"100304.01.3910 187193
CMP 219/30219M12/M16/1/2"100352.01.5310 187202

CMP 21/4021M8/M1075151.00.2325 187220
CMP 27/4027M8/M1075151.00.2425 187229
CMP 34/4034M8/M1075159.50.2525 187238
CMP 42/4042M8/M1075173.00.2825 187247
CMP 49/4049M10/M12/3/8"75190.00.5025 187256
CMP 60/4060M12/M16/1/2"75207.00.8610 187265
CMP 76/4076M12/M16/1/2"75232.00.9710 187283
CMP 89/4089M12/M16/1/2"75240.00.9710 187292
CMP 108/40108M12/M16/1/2"75273.01.1710 187310
CMP 114/40114M12/M16/1/2"75273.01.1810 187319
CMP 133/40114M12/M16/1/2"100295.01.3010 187328
CMP 140/40140M12/M16/1/2"100304.01.4210 187337
CMP 159/40159M12/M16/1/2"100329.01.6010 187346
CMP 168/40168M12/M16/1/2"100329.01.6110 187355
CMP 219/40219M12/M16/1/2"100382.01.9610 187364
CMP 273/40273M16100471.02.9410 187373
