Application

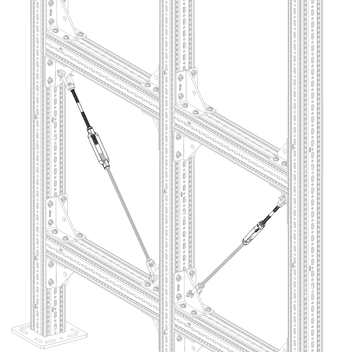

Clamping Set for construction of bracings and wind bracings e.g. in the system siFramo as tie rod to transfer loads/influences.

Scope of delivery

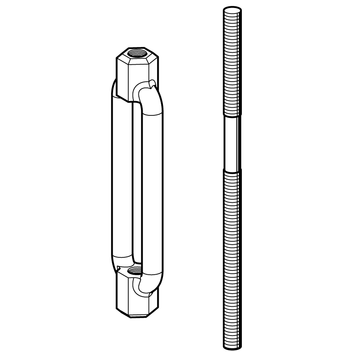

Clamping Set SPZ, containing:
1 turnbuckle
1 tie rod with left-/right-hand thread

Installation

The connection to the reinforcing component is made on one side of the turnbuckle with the threaded rod and on the other side with the tie rod. Connection to the structure is done by the Threaded Clevis GWB.

Technical Data

Type
max. perm. tensile load
[kN]
M10 13.6
M12 21.4
M16 45.3

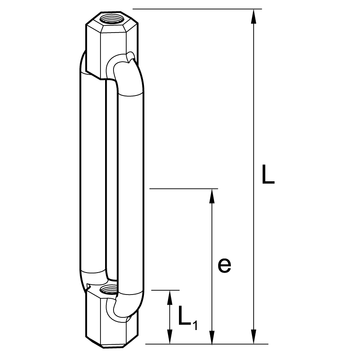

Turnbuckle:

Type
L
[mm]
L1
[mm]
e
[mm]
M10 125 10 62.5
M12 125 12 62.5
M16 150 16 75

Tie rod:

Type
L
[mm]
L1
[mm]
L2
[mm]
M10 250 80 130
M12 250 80 130
M16 250 80 130

Material:
Steel, HCP
TypeW
[kg]
Quantity
[pack]
Part
number
SPZ M100.310 116573
SPZ M120.410 116574
SPZ M160.710 116575
