High Corrosion Protected Products

Angle Connector EV CC 41-3 HCP

Application

Pre-assembled connecting element for three-dimensional frame structures, optimised for linking channels of the 41 series at an angle of 90°. Preferably used in combination with 41/41 square channels. The adjustment for the channel opening could still be chosen.

  • Fast-Technique for 90° joints of Channel System 41.
  • Locks automatically when being put in place and supports its own weight.
  • Secure, form-locking, non-positive connection. Serrated Channel Nut with Hexagon Bolt M10.
  • Ideal shaping for high stiffness.
  • The proven Sikla rhomb guarantees a secure torque and preload force.

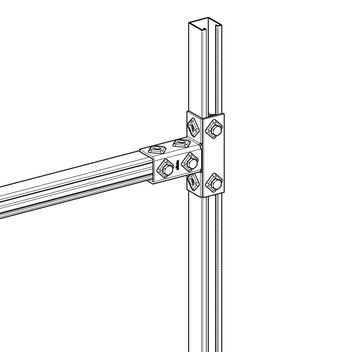

Installation

To be used in pairs.

Technical Data

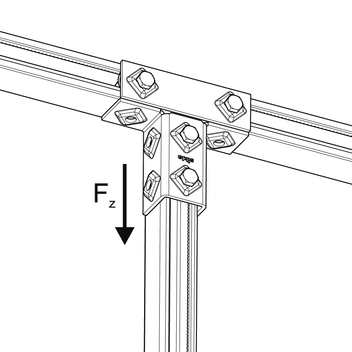

Max. per. working load:
Fz = 5 kN
- Fz = 10 kN
Tightening torque:
50 Nm
Material:
Steel, HCP
TypeW
[kg]
Quantity
[pack]
Part
number
EV CC 41-30.8810 117462
