Assembly System siMetrix 46
Profile Clip MPK 46
Application

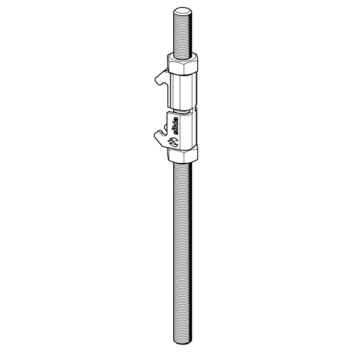

With the Profile Clip MPK 46, threaded rods can be connected to the side of the Profile PRO 46 in a stepless manner. The height adjustment of the pipe clamp is also not limited. Due to the small installation footprint and offset lateral profile mounting, the clamp ears can be positioned to overlap one another.
Installation
Hook the Profile Clip MPK 46 into place on one side and snap it on by pressing in the middle. Then push the threaded rod through, set the required height and lock it with a nut at the top and bottom.
Technical Data
| Type | d [mm] | H [mm] | ± Vx,zul [kN] | ± Vy,zul [kN] | ± Vz,zul [kN] |
|---|---|---|---|---|---|
| M8 | 9 | 45 | 0,5 | 0,84 | 2,93 |
| M10 | 11 | 45 | 0,5 | 0,84 | 2,93 |
| M12 | 13 | 45 | 0,5 | 0,84 | 2,93 |
| M16 | 17 | 45 | 0,5 | 0,84 | 2,93 |
| Tightening torque: | 15 Nm |
| Material: | Steel, HCP |
