Pressix CC 41 - Assembly System

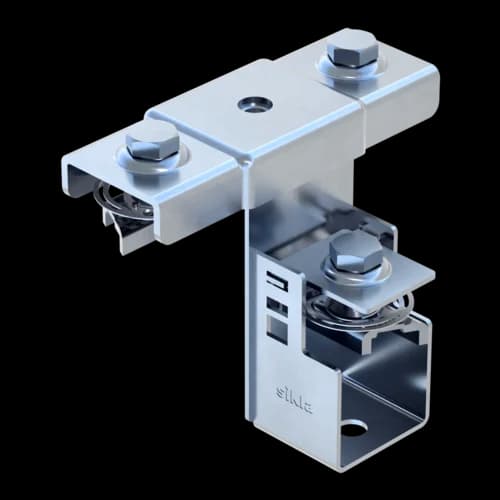

End Tee IR-E




Application
The Cross Tee IR-E is used to create an end connection for installation grids made of Channels 41. In combination with Channels 41 and the Cross Tee IR-M a complete installation grid can be created. For the connection to the structure the Tension Tie Rod Disc IR, which enables a y-suspension, can be used if necessary.
An installation grid system allows a cost- and time-saving adjustment of the pipe and cable supplies. New production process requirements can be implemented efficiently.
- Saving time by means of Pressix CC-components
- Flexible choice of Channels
- Simple modificaton of End and Cross Tees
Scope of delivery
1 x Suspension Holding Bracket IR-RA M10
1 x hooked feeder plate
1 x clamping plate
1 x hexagon bolt M10 x 25
1 x Speed Nut NT CC 41

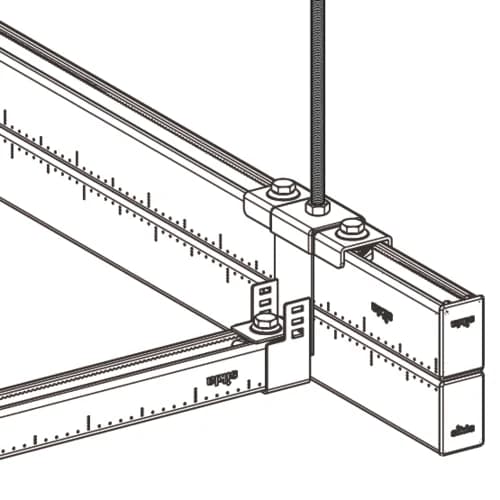

Installation
1. | Mount the hooked feeder plate of the End Tee to the main runner. |
2. | Place the suspension holding bracket over the hooked feeder plate and tighten it. |
3. | Insert the cross strut section into the hooked feeder plate and fix it by means of the clamping plate, Speed Nut NT CC 41 and hexagon bolt. |
Technical Data
Type | appropiate main runner | appropiate cross strut section | H [mm] | B [mm] | L [mm] | d [mm] |
---|---|---|---|---|---|---|
IR-E 41/52 D | MS 41/52 D | MS 41/41, 41/52, 41/62 | 104 | 43 | 40 | 11 |
IR-E 41/62 D | MS 41/62 D | MS 41/41, 41/52, 41/62 | 124 | 43 | 40 | 11 |

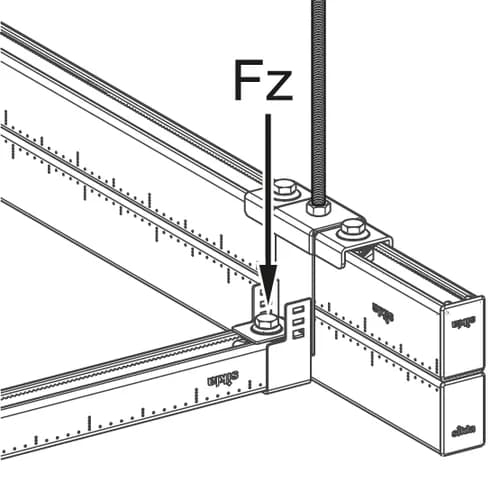

Max. perm. load per fixing point Fz: | 6 kN |
Tightening torque: | 10 Nm |
Material: | Steel, galvanised |
