siFramo 80

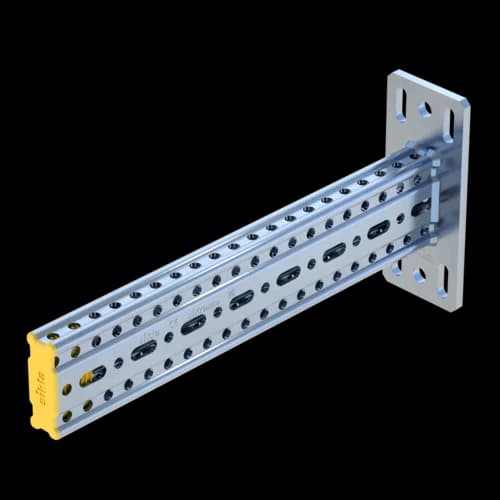

Cantilever Bracket AK F 80/30-Q
Application
Galvanised box-section with welded end-plate to serve as cantilever
arm for Beam Section TP F 80 or Beam Bracket TKO F 80.

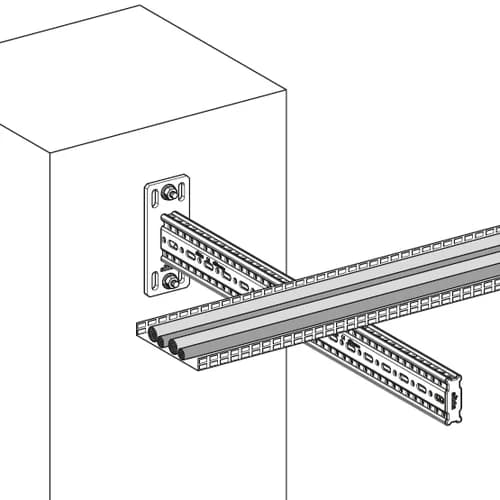

Solid cantilevers e.g. for cable containment when fixed to walls with suitable
wall anchors M12.
Installation
With 4 x Self Forming Screw FLS when fixed to another siFramo hollowbox-
section. Fixing to walls and ceilings with suitable wall anchors M12.
Technical Data
| Type | Dimensions of base plate [mm] | L [mm] | d [mm] | b1 x l1 [mm] |
|---|---|---|---|---|
| AK F 80/30-Q-400 | 190 x 80 x 8 | 400 | 14 | 11 x 20 |
| AK F 80/30-Q-800 | 190 x 80 x 8 | 800 | 14 | 11 x 20 |
| Material: | Steel, HCP |
Approvals / Conformity
CE-mark (Declaration of performance see www.sikla.com/downloads)
ETA-24/0471
Declaration of performance Cantilever Bracket AK F PDF | 1.6 MB
