siFramo 80
Bracing Arm SKO F 80
Application
Bracing arm for reinforcement of frames made from Beam Section TP F 80
and/or Cantilever Bracket AK F 80.
Installation

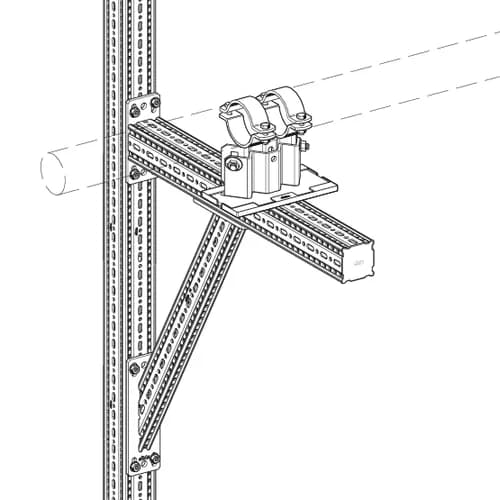

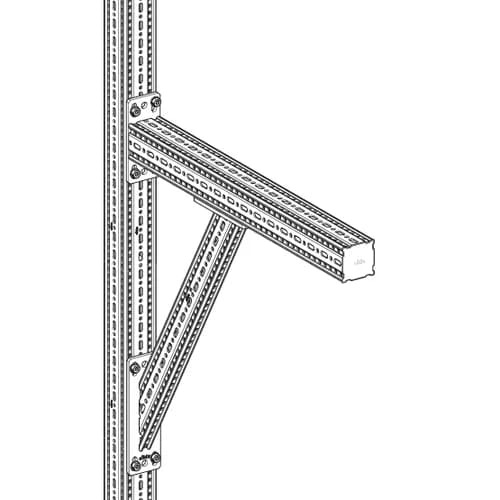

With 2 x 4 Self Forming Screw FLS when used inside a corner of two F 80
size box-sections.
With 4 x Self Forming Screw FLS and 2 x suitable M12 wall anchors/fixings
when used to connect between one F 80 size box-section and the building
structure.
Technical Data
| Type | Dimensions of base plate [mm] | e [mm] | e1 [mm] |
|---|---|---|---|
| SKO F 80 | 265 x 80 x 8 | 438 | 719 |
| Material: | Steel, HCP |
Approvals / Conformity
CE-mark (Declaration of performance see www.sikla.com/downloads)
ETA-24/0471
Declaration of performance Bracing Arm SKO F PDF | 39.5 KB
