Type A
Type B
Group: A299
Connecting component for direct attachment of rod hanger assemblies to the siFramo 100 system

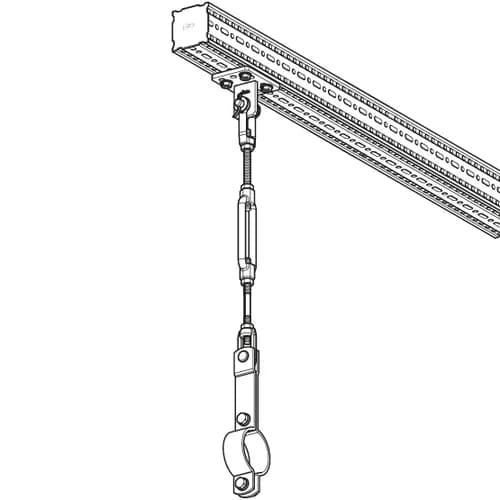

Pre-welded Eye-Plate serves as a base for connecting Rod Hanger Load Chain Assembly LKV (sizes M10 to M16) and Pipe Clamps type Stabil Form C LK

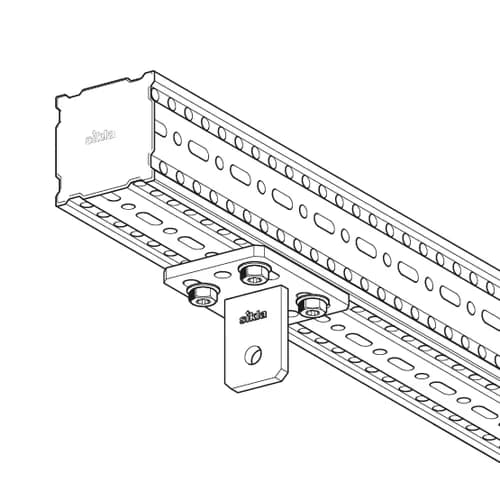

The siFramo Eye-Plate HP F 80 is fastened to the supporting siFramo 80 section by means of 4no. FLS F screws. The siFramo Eye-Plate can also be fastened directly to concrete by means of 2no. M10 anchors.

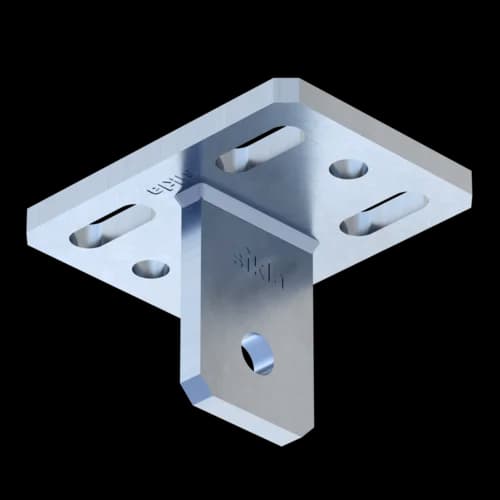

Type A: Load Chain runs crosswise to the beam

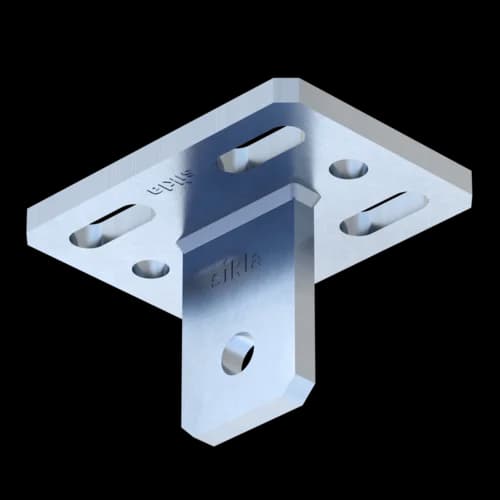

Type B: Load Chain runs longitudinally to the beam
Info | Type | Weight | Quantity | Part number | |
| HP F 80 - A M10 HCP | 0,65 kg/pcs. | 10 pcs. | 113023 | ||
| HP F 80 - A M12 HCP | 0,64 kg/pcs. | 10 pcs. | 113024 | ||
| HP F 80 - A M16 HCP | 0,64 kg/pcs. | 10 pcs. | 113025 | ||
| HP F 80 - B M10 HCP | 0,65 kg/pcs. | 10 pcs. | 113020 | ||
| HP F 80 - B M12 HCP | 0,64 kg/pcs. | 10 pcs. | 113021 | ||
| HP F 80 - B M16 HCP | 0,65 kg/pcs. | 10 pcs. | 113022 | ||
Connecting component for the direct attachment of rod hanger assemblies to the siFramo 100 system. The pre-welded Eye-Plate serves as a basic element for the connection of the Rod Hanger Load Chain Assembly LKV in sizes M10 up to M16 rod and Pipe Clamps type Stabil Form C LK.
Certification
Primary element material | steel |
Surface finish | HCP |
Corrosion protection class | C4 |
Type | -VZ,perm. |
HP F 80 - A M10 HCP | 11,20 kN |
HP F 80 - A M12 HCP | 12,10 kN |
HP F 80 - A M16 HCP | 12,50 kN |
HP F 80 - B M10 HCP | 11,20 kN |
HP F 80 - B M12 HCP | 12,10 kN |
HP F 80 - B M16 HCP | 12,50 kN |
The implementation and construction requirements of the components, their design as well as their verifications and load tests were carried out following the standards VGB R 510 L part I, KTA 3205.3 and DIN EN 13480-3.
