Pipe Shoes

Guided Support FR - H 20 (DN 65 - 300)

Application

Guided Support for attachment of steel or stainless steel pipes of DN 65 up to DN 300 on steel beams with width of 80 up to 300 mm and max. flange thickness of 20 mm.

Scope of delivery

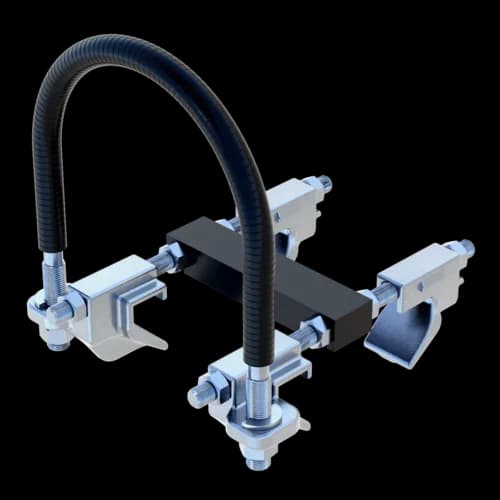

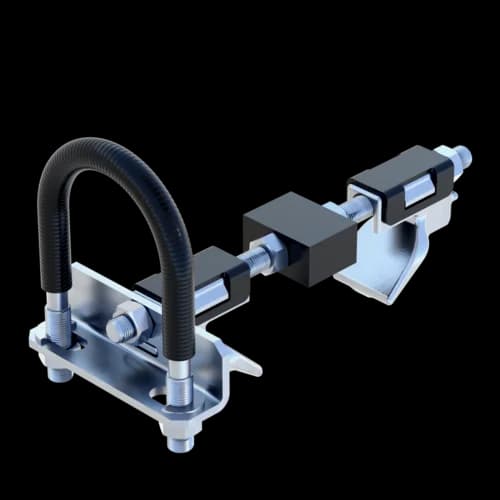

Preassembled Guided Support including contact corrosion protection by means of a U-bolt sheath and a PA slide bearing block. U-bolt with welded-on semi-washers and 2 hex nuts to secure position.

Guided Support set contains:
4 clamping hooks
1 slide bar
2 connecting rods M10
8 nuts M10

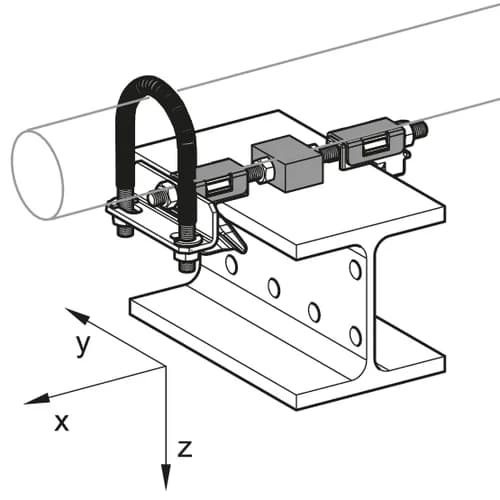

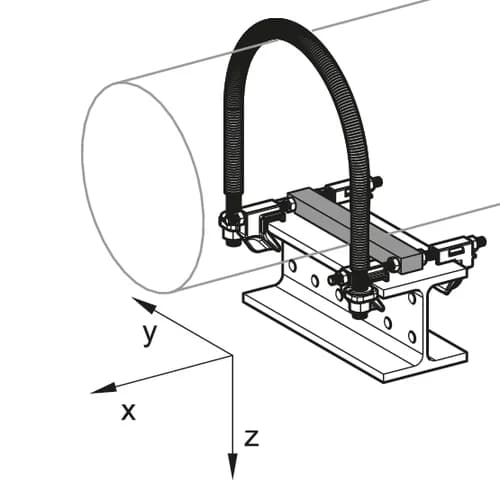

Installation

Position the preassembled clamping hooks onto the beam flange and tighten the nuts (to 10 Nm). For beam width < 100mm the 4 nuts of the PA bearing block have to be removed. Fasten U-bolt to the clamping hooks with the included nuts (to 15 Nm). The pipe slides directly on the PA bearing block. Axial guiding of the pipe is ensured by the U-bolt.

Technical Data

DN
D
[mm]
H
[mm]
B
[mm]
65 76 20 124
80 89 20 136
100 114 20 162
125 140 20 190
150 170 20 218
175 194 20 244
200 219 20 270
225 245 20 300
250 273 20 328
300 324 20 378

Type
for flange width
[mm]
80/120 80 - 120
140/160 121 - 160
180/220 161 - 220
240/260 221 - 260
280/300 261 - 300

Material:
U-bolt
Steel, HCP
U-Bolt sheath:
Polyamide 6.0, free of halogens
Sheet metal parts:
Steel, HCP
Rods, nuts:
Steel, HCP
PA block:
Polyamide 6.0, 30 % glass fibre reinforced, black
Temperature range:
-20 up to +130° C (at the PA block and shrinking tube)

* in stock

TypeW
[kg]
Quantity
[pack]
Part
number
FR - H 20 DN 65 - 80/1201.710 113691
FR - H 20 DN 65 - 140/1601.91 113692
FR - H 20 DN 65 - 180/2202.01 113693
FR - H 20 DN 65 - 240/2602.11 113694
FR - H 20 DN 65 - 280/3002.11 113695
FR - H 20 DN 80 - 80/120 *1.85 113696
FR - H 20 DN 80 - 140/1601.91 113697
FR - H 20 DN 80 - 180/2202.11 113699
FR - H 20 DN 80 - 240/2602.21 113700
FR - H 20 DN 80 - 280/3002.31 113701
FR - H 20 DN 100 - 80/120 *1.85 113702
FR - H 20 DN 100 - 140/1602.01 113703
FR - H 20 DN 100 - 180/2202.11 113705
FR - H 20 DN 100 - 240/2602.21 113706
FR - H 20 DN 100 - 280/3002.31 113707
FR - H 20 DN 125 - 80/120 *1.95 113708
FR - H 20 DN 125 - 140/1602.11 113709
FR - H 20 DN 125 - 180/2202.21 113710
FR - H 20 DN 125 - 240/2602.31 113711
FR - H 20 DN 125 - 280/3002.41 113712
FR - H 20 DN 150 - 80/120 *2.05 113713
FR - H 20 DN 150 - 140/1602.21 113714
FR - H 20 DN 150 - 180/2202.31 113715
FR - H 20 DN 150 - 240/2602.41 113716
FR - H 20 DN 150 - 280/3002.51 113717
FR - H 20 DN 175 - 80/1202.15 113718
FR - H 20 DN 175 - 140/1602.31 113719
FR - H 20 DN 175 - 180/2202.41 113720
FR - H 20 DN 175 - 240/2602.51 113721
FR - H 20 DN 175 - 280/3002.51 113722
FR - H 20 DN 200 - 80/120 *2.15 113723
FR - H 20 DN 200 - 140/1602.31 113724
FR - H 20 DN 200 - 180/2202.41 113725
FR - H 20 DN 200 - 240/2602.51 113726
FR - H 20 DN 200 - 280/3002.61 113727
FR - H 20 DN 225 - 80/1202.65 113728
FR - H 20 DN 225 - 140/1602.81 113729
FR - H 20 DN 225 - 180/2202.91 113730
FR - H 20 DN 225 - 240/2602.91 113732
FR - H 20 DN 225 - 280/3003.01 113733
FR - H 20 DN 250 - 80/1202.75 113734
FR - H 20 DN 250 - 140/1602.91 113735
FR - H 20 DN 250 - 180/2203.01 113736
FR - H 20 DN 250 - 240/2603.01 113737
FR - H 20 DN 250 - 280/3003.11 113738
FR - H 20 DN 300 - 80/1202.85 113739
FR - H 20 DN 300 - 140/1603.01 113740
FR - H 20 DN 300 - 180/2203.21 113741
FR - H 20 DN 300 - 240/2603.21 113742
FR - H 20 DN 300 - 280/3003.31 113743
