Pipe Shoes

Fixed Point Set XS

Application

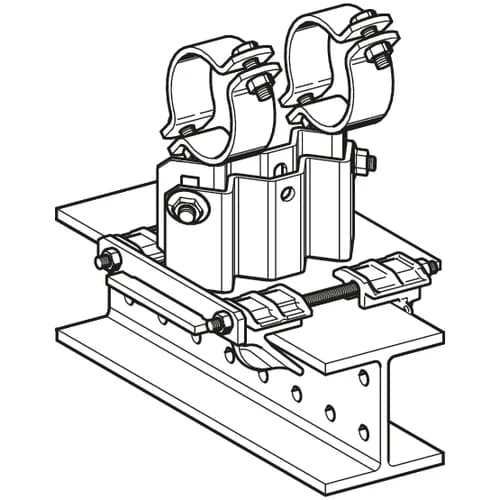

Modification of Sliding Pipe Shoes to Fixed Point Pipe Shoes. The slide plate has to be removed.
Max. beam flange width t ≤ 30 mm

Scope of delivery

Pre-assembled Fixed Point Set containing:
4 Clamping hooks
2 Grub screws
1 Cross bar
2 Lift-off preventions (XS 280/300)
Hexagon nuts:
4 for XS 80/120 and XS 140/160 each
6 for XS 180/220 and XS 240/260 each
10 for XS 280/300

Installation

Axial fixed point forces can only be attained by the professional use of anti-slip protections (e.g. cleats, stoppers). Those have to be planned during the design of the piping and are on the responsibilty of the piping manufacturer.

Technical Data


Flange Thickness
[mm]
Beam Width
80 - 220 mm
Tightening Torque
[Nm]
Beam Width
221 - 300 mm
Tightening Torque
[Nm]
5 - 10 40 15
11 - 20 25 15
21 - 30 20 15

Material:
Metal parts:
Steel, HCP
Grub screws, nuts:
Steel, HCP
Clamping hooks:
Cast iron, HCP

Pipe Shoe - external monitoring PDF | 626.1 KB

Approvals / Conformity

TypeFor flange width
[mm]
W
[kg]
Qty.
[set]
Part
number

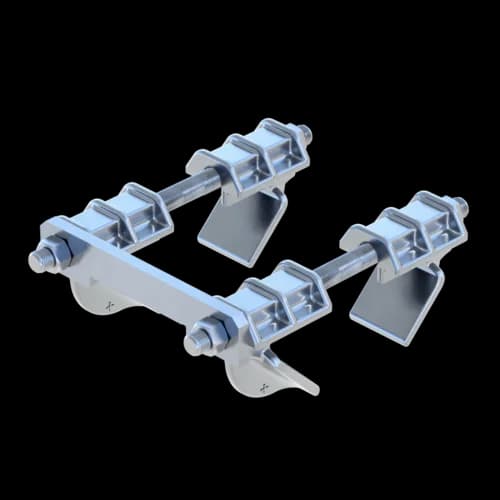

XS 80/12080 - 1202.31 110357
XS 140/160121 - 1602.41 110358

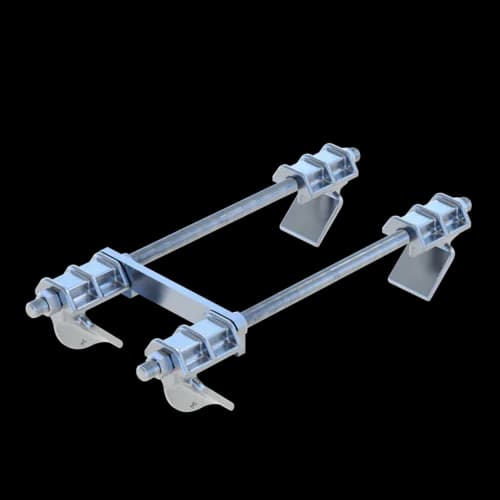

XS 180/220161 - 2202.51 110359
XS 240/260221 - 2602.61 110360

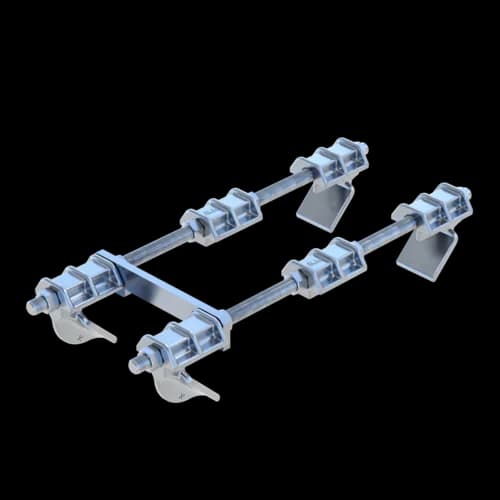

XS 280/300261 - 3003.21 110361
