Pipe Shoes

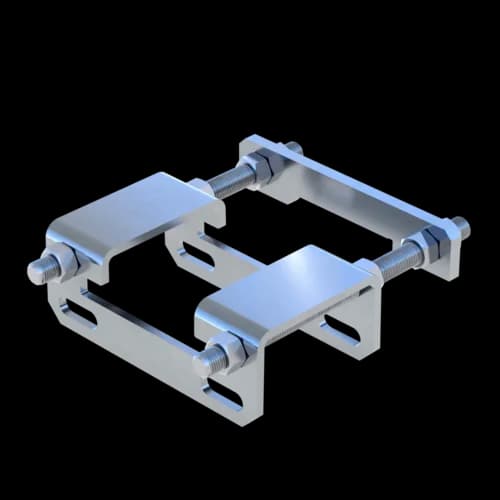

Fixed Point Bracket XW F

Application

Element for modification of Sliding Pipe Shoes to Fixed Point Pipe Shoes.

Installation

The slide plate of the Pipe Shoe is disassembled. Connection to Beam Sections TP F 80, 80/30, 100 and 100/160 by means of 4 Self-Forming Screws FLS F.

Axial fixed point forces can only be attained by the professional use of anti-slip protections (e.g. cleats, stoppers). Those have to be planned during the design of the piping and are on the responsibilty of the piping manufacturer.

Technical Data

Material:
Steel, HCP

Approvals / Conformity

TypeW
[kg]
Quantity
[pack]
Part
number
XW F 801.31 110356
XW F 1001.61 113087
