Pipe Shoes

Axial stop AS F

Application

Modification of Simotec pipe shoes to a single-sided axial stop, for use with siFramo profiles. Using the Axial stop, the pipe shoe can move axially through the pipe to a predefined degree of displacement, with restricted limits in one axial direction. .

Scope of delivery

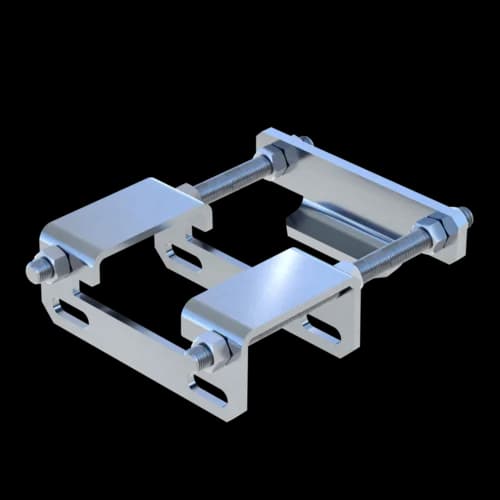

Axial stop AS F consists of:
1 Fixed point bracket
1 Axial stop
2 Threaded rod M12
8 Hexagon nut M12 - 8

Installation

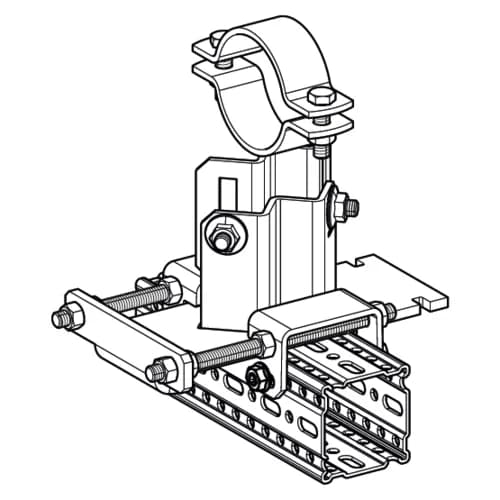

The sliding plate of the pipe shoe is dismantled. The shoe bracket is connected to the beam section F 80 or F 100 with 4 FLS F self-forming screws. The required amount of axial movement is determined using the supplied nuts, with a maximum displacement of 125 mm, equating to half of the sliding plate. Forces in the axial direction can only be achieved if anti-slip devices (e.g. cleats/stoppers) are used properly. These must be provided when designing the pipeline and are the responsibility of the pipeline manufacturer.

Technical Data

Load capacities correspond to the values of the fixed point bracket XW F, see documentation in the catalogue. However, maximum axial load is 12 kN per Axial stop.

Material:
Steel, HCP
TypeW
[kg]
Quantity
[pack]
Part
number
AS F 801.61 802787
AS F 1001.81 802788
