Assembly System siMetrix 46
Joining Plate AP 46
Application
Interface element to enable the connection of a Cantilever Bracket AK 46 or a WBD 46 to steel beams with beam flange widths of 80 to 120 mm.
Scope of delivery

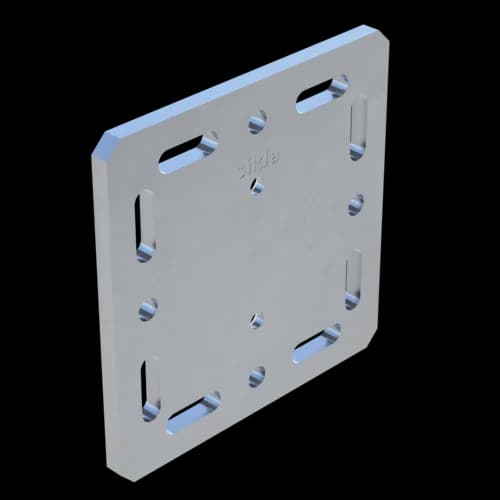

Joining Plate

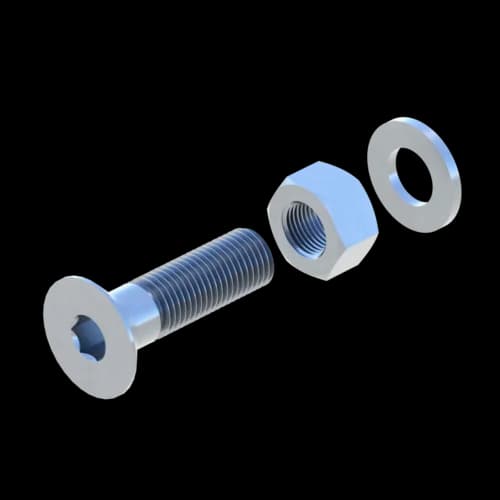

Mounting Set AP:
2 Countersunk Bolts M10 x 35 - 8.8
2 Hexagon Nuts M10
2 Washers
Installation

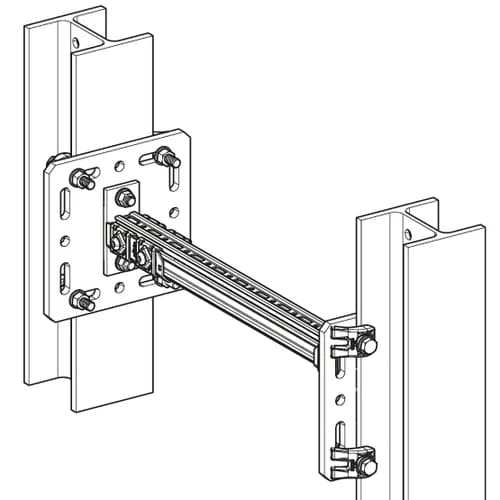

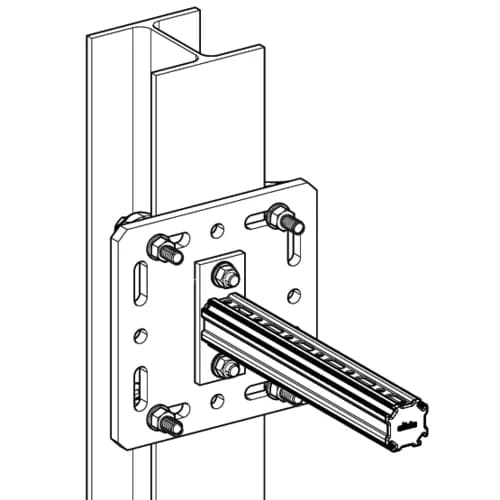

Form locking connection of joining plate with Cantilever Bracket AK 46 or WBD 46 using countersunk Screws and nuts. Force-locking fastening to steel beams using Assembly Set MS 5P M12 S.
Technical Data
| L [mm] | B [mm] | t [mm] | Round holes for | Connection to flange width [mm] | Tightening torque Mounting Set [Nm] |
|---|---|---|---|---|---|
| 220 | 220 | 12 | M12 | 80 - 120 | 81 |
| Material: | |
| Joining Plate: | Steel, HCP |
| Screws: | DIN EN ISO 10642 Steel, property class 8.8, HCP |
| Nuts: | Steel, property class 8, HCP |
| Washers | Steel, HCP |
