Assembly System siMetrix 46
Channel Adapter SA PRO 46
Application

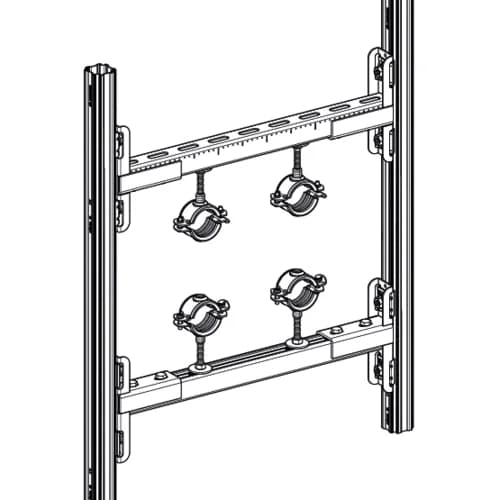

For integrating lighter constructions within the siMetrix system. Enables the profile transition from the siMetrix Profile PRO 46 to the Pressix CC 41 and 27 channel systems.
Installation

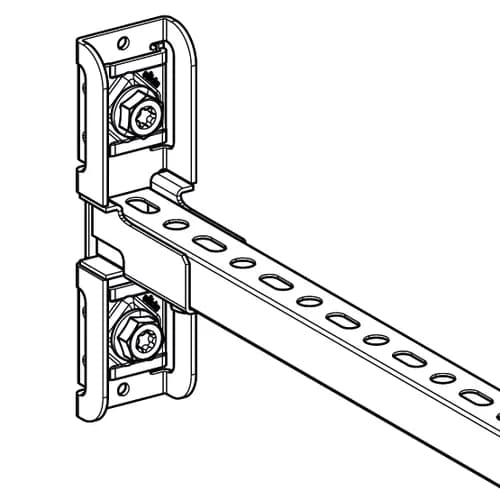

Hook the base plate of the channel adapter into a groove on the side of the profile, press the lock on the opposite side and tighten the screws. Then insert the channel, press it in and tighten it.
Technical Data
| Type | H [mm] | B [mm] | L [mm] |
|---|---|---|---|

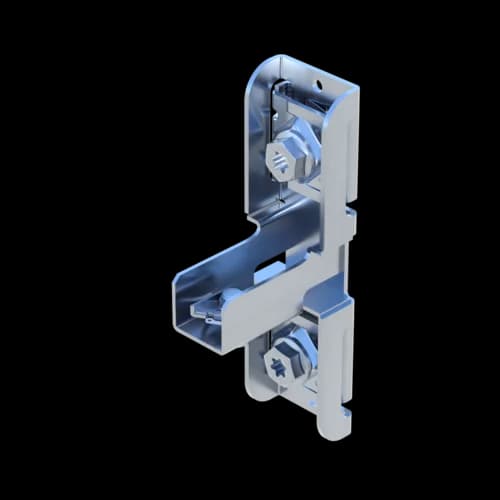

| SA PRO 46-27 | 170 | 47 | 70 |

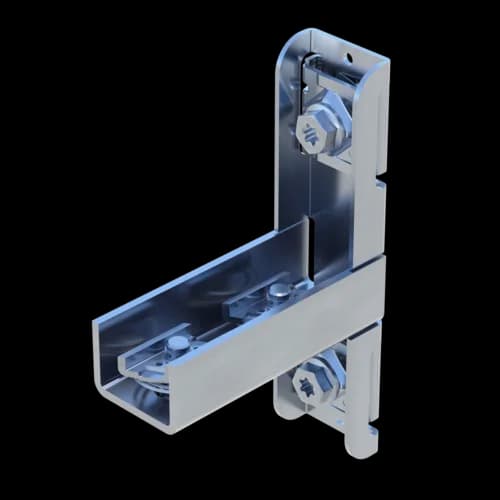

| SA PRO 46-41 | 195 | 47 | 125 |

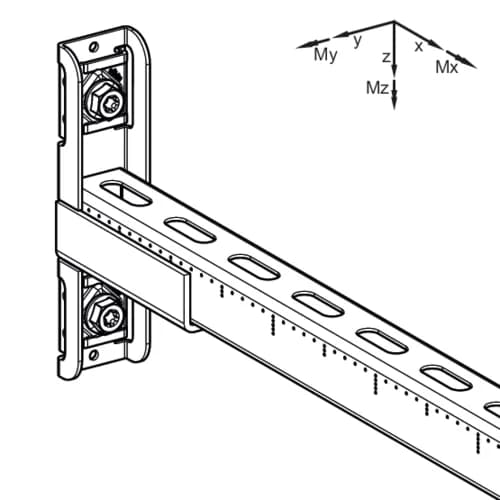

| Type | Vx,zul [kN] | ± Vy,zul [kN] | ± Vz,zul [kN] | My,zul [kNm] | - My,zul [kNm] | ± Mz,zul [kNm] |
|---|---|---|---|---|---|---|
| SA PRO 46-27 | 1,08 | 2,91 | 0,83 | 0,05 | 0,15 | 0,04 |
| SA PRO 46-41 | 2,89 | 1,15 | 0,83 | 0,33 | 0,44 | 0,16 |
| Configuration: | Base plate welded to U-section |
| Required tool: | T50 Bit or 17 mm (AF) Socket Bit |
| Tightening torque: | 20 Nm Pressix speed nuts: SA PRO 46-27: 10 Nm SA PRO 46-41: 40 Nm |
| Material: | Steel, HCP |
