Assembly System siMetrix 46

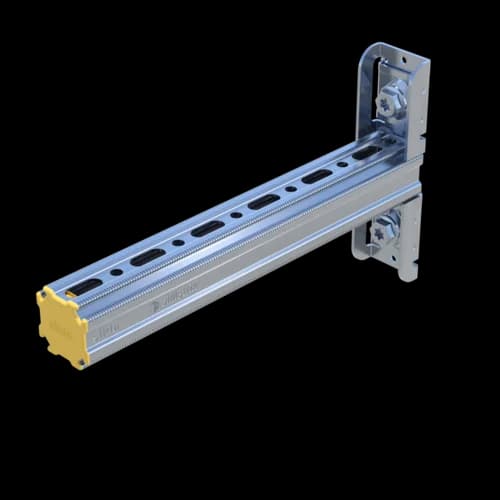

Cantilever Bracket AK CC 46-P

Application

Prefabricated single-arm cantilevers for the PRO 46 profile.

Installation

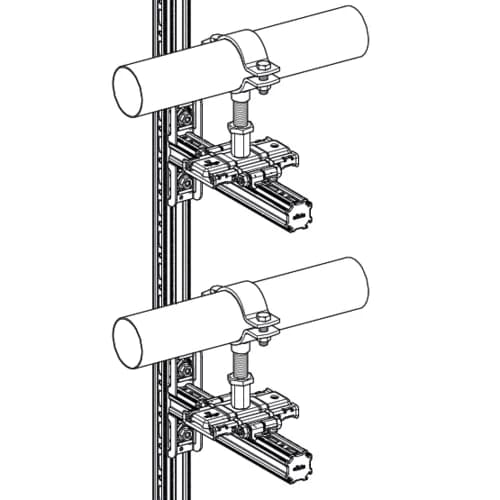

When used in conjunction with sliding elements, a cross brace (in combination with Tie Rod STR and Blockset PBS 46 M10 x 50) is recommended to resist forces in the axial direction of the pipe. For cantilever lengths ≥ 500 mm, a vertical brace or support (e.g. with tie rod STR and blockset PBS 46 M10 x 50) is recommended.

Technical Data

Type
L
[mm]
H
[mm]
B
[mm]
t
[mm]
AK CC 46-P - 200 200 170 47 2,5
AK CC 46-P - 400 400 170 47 2,5
AK CC 46-P - 600 600 170 47 2,5
AK CC 46-P - 800 800 170 47 2,5
AK CC 46-P - 1000 1000 170 47 2,5

Type
Vx,zul
[kN]
± Vy,zul
[kN]
± Vz,zul
[kN]
± My,zul
[kNm]
± Mz,zul
[kNm]
AK CC 46-P 11,84 3,10 0,83 0,44 0,15

Configuration:
Base plate welded to Profile PRO 46-P
Required tool:
T50 Bit or 17 mm (AF) Socket Bit
Tightening torque:
20 Nm

Material:
Steel, HCP
TypeW
[kg]
Quantity
[pack]
Part
number
AK CC 46-P - 2000.8810 802214
AK CC 46-P - 4001.4210 802215
AK CC 46-P - 6001.981 802216
AK CC 46-P - 8002.511 802217
AK CC 46-P - 10003.081 802218
