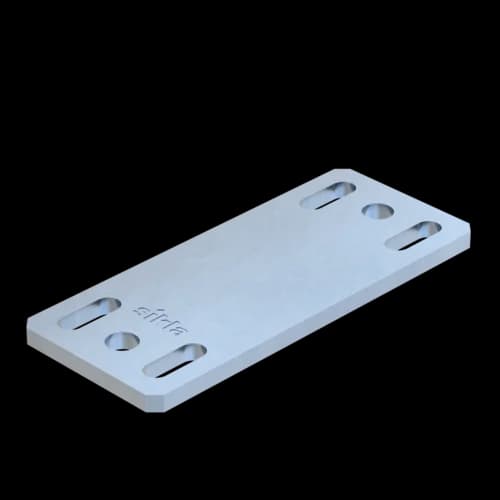

Welding Plate SPL F 80 HCP
Group: A430
Connecting element for welding Load Chains and spring hangers to the TP F 80 profile
Welding Plates SPL with HCP surface for excellent weldability
Choose your country
Go to your local Sikla page and discover offers for your country or sales region:
Country
Group: A430
Connecting element for welding Load Chains and spring hangers to the TP F 80 profile
Welding Plates SPL with HCP surface for excellent weldability
Installation of SPL F 80 with 4 Self Forming Screws FLS to Beam Section TP F.
Installation surface: 90 mm x 70 mm
Info | Type | Weight | Quantity | Part number | |
| SPL G F 80 HCP | 0,850 kg/pcs. | 1 pcs. | 117833 | ||
Interface element to enable a welded connection of load chains, spring hangers etc. to Beam Section TP F. Our type 'SPL universal' enables a welded connection to primary steel with flange width up to 300 mm. At the same time it's possible to install type 'SPL universal' to Beam Section TP F if a larger installation surface is needed. The welding plate can be welded directly without previous treatment due to a corrosion-resistant weld-thru coating which is compatible with both the HDG surface of the siFramo section and the health and safety requirements of the welding process.
Certification
Primary element material | steel |
Surface finish | HCP |
Corrosion protection class | C4 |
