siFramo 80
U Bolt Fastening UB F
Application

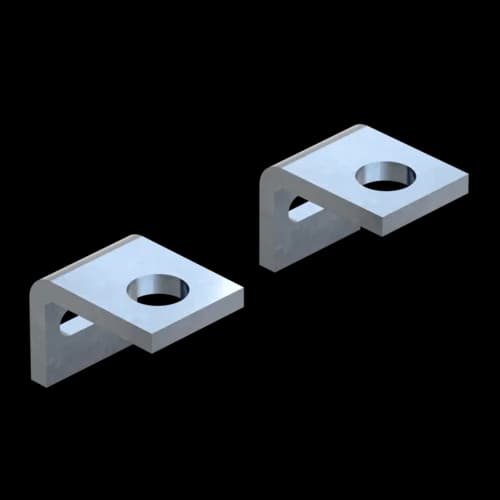

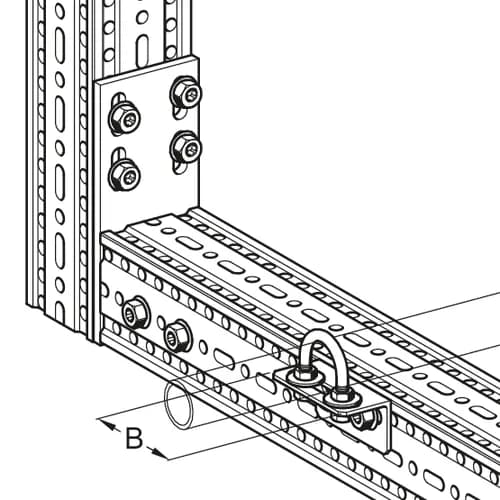

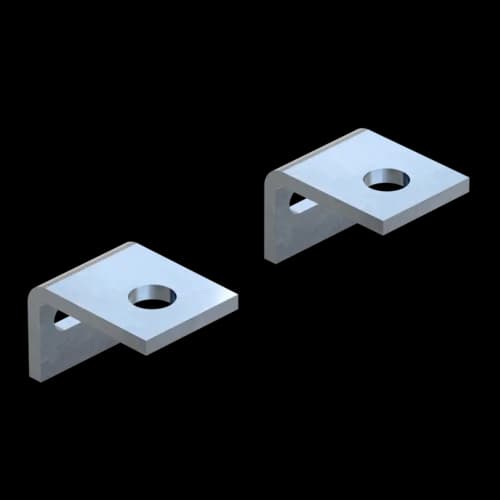

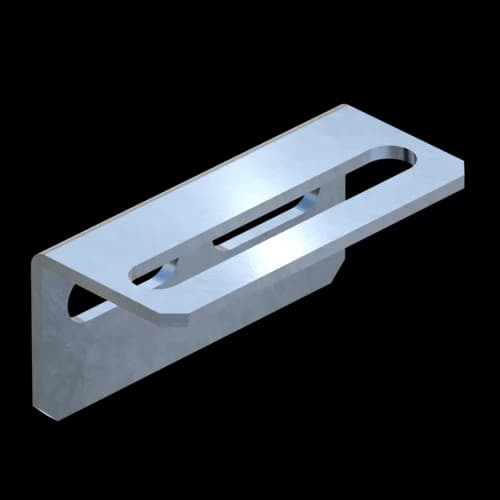

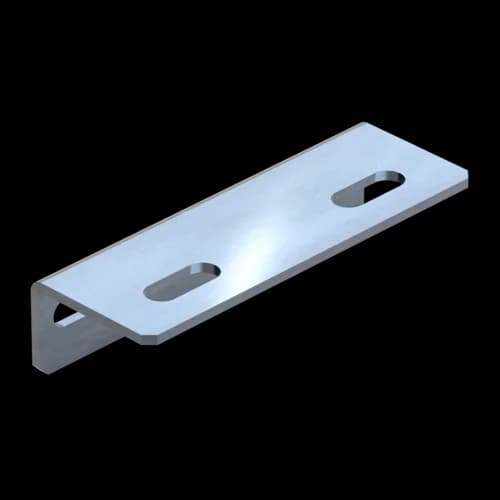

U Bolt Fastening to connect standard U-Bolts required for pipework to the supporting Beam Sections, Cantilever Brackets and Beam Brackets F80 or F100.
Scope of delivery
For U-bolts ≥ 4" always 2 U-bolt fastenings F are needed.
Technical Data
| Typ | d [mm] | b x l [mm] | B [mm] |
|---|---|---|---|
| UB F 1/2" - 1 1/2" | - | 65 x 11 | 85 |
| UB F 2" - 3" | - | 20 x 13 | 165 |
| UB F 4" - 6" | 17 | - | 45 |
| UB F 8" - 12" | 22 | - | 45 |
| UB F 378 - 530 | 26 | - | 45 |
| Material: | Steel, HCP or hot-dipped galvanised |
