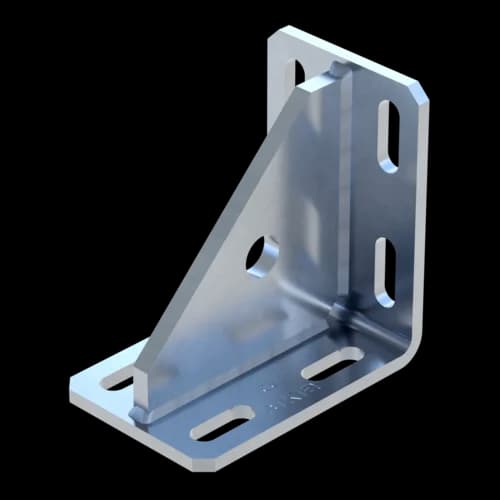

Corner Bracket WD F 80

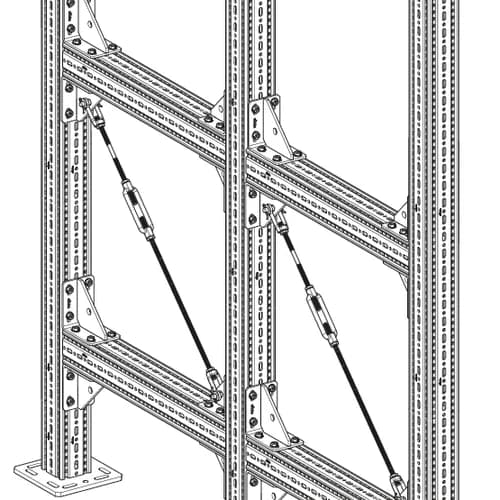

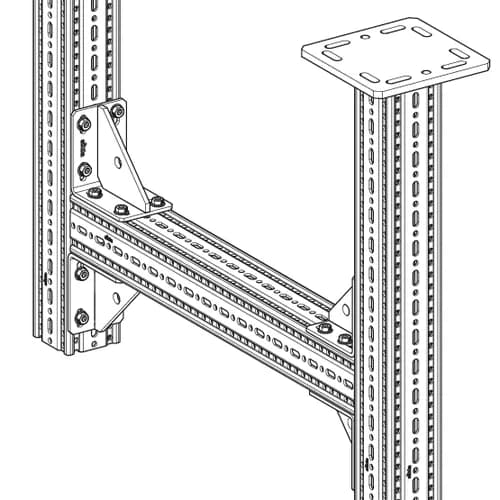

Component to be used for connections between two F 80 sections when the structural design requires an alternative to the End Support STA F 80 as the default solution. Connections with the Corner Bracket WD F 80 allow flexible constructions and provide a high load capacity at the same time. The central hole allows for the integration of diagonal cross-bracing allowing more complex structures to be made.
To be used in pairs only. 8 pieces of Self Forming Screw FLS are necessary for one Corner Bracket.
| Type|| max. tensile load|
|WD F 80 120/120||45.3|
| Material:||Steel, HCP|
Approvals / Conformity
CE-mark (Declaration of performance see www.sikla.com/downloads)
