siFramo 100

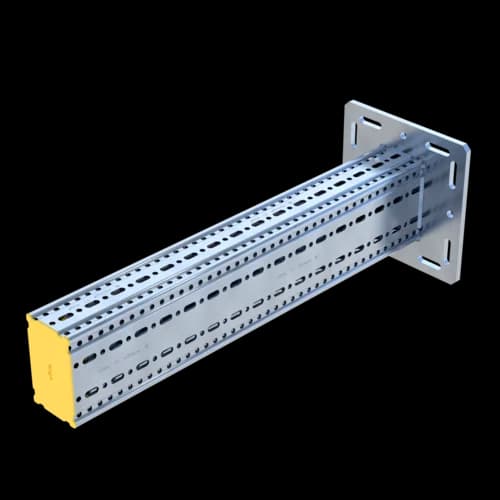

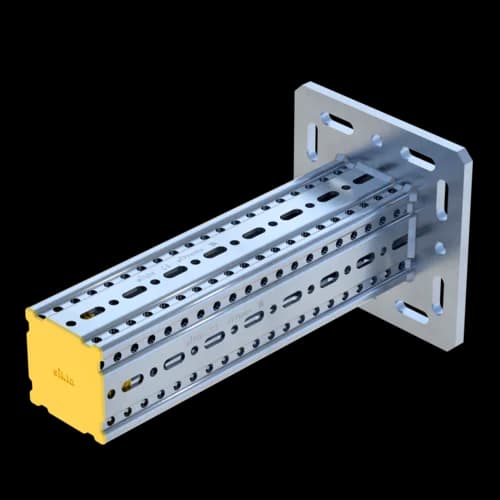

Beam Bracket TKO F 100/160

Application

Galvanised hollow-box-section with welded end-plate to serve as cantilever arm. May be used as a crossbar when combined with End Support STA/End Support WBD and 4 x Self Forming Screw FLS.

Scope of delivery

With pre-assembled End Cap ADK F100

Installation

Depending on the situation, different options are recommended:

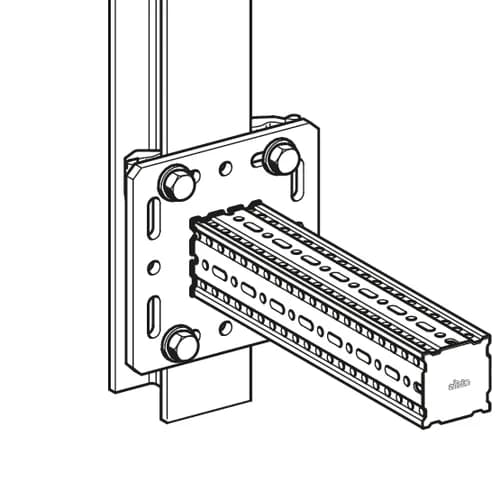

a) Directly to building structure: 4x suitable wall anchors.

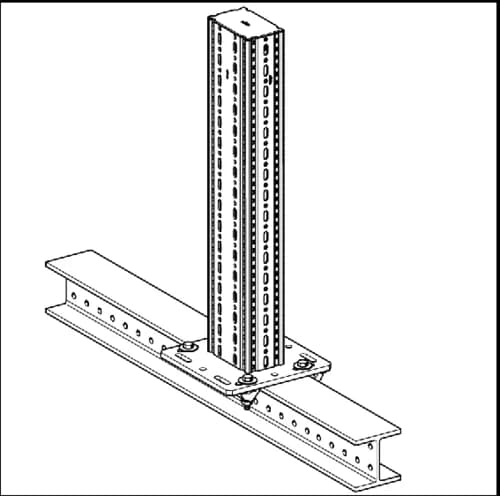

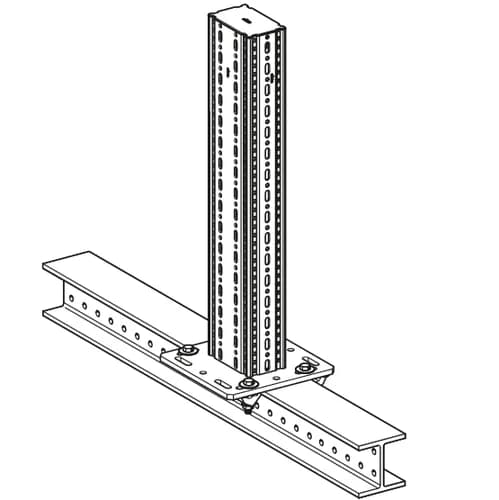

b) To traditional steel beams between 100 - 180 mm flange dimensions: with Assmebly Set 5P M12 S.

Technical Data

Type
L
[mm]
Dimensions of base plate
[mm]
Slots in base plate for
TKO F 100/160-800 800 280 x 280 x 12 M12
TKO F 100/160-1200 1200 280 x 280 x 12 M12

Configuration:
Base plate welded to Beam Section TP F 100/160
Material:
Base plate:
Steel, HCP
Beam Section:
Steel, HCP

Approvals / Conformity

CE mark (Declaration of performance see www.sikla.com/service/downloads)

Declaration of performance Beam Bracket TKO F PDF | 125.2 KB

TypeW
[kg]
Quantity
[pack]
Part
number
TKO F 100/160-80018.51 113097
TKO F 100/160-120024.51 113420
