Stainless Steel Products

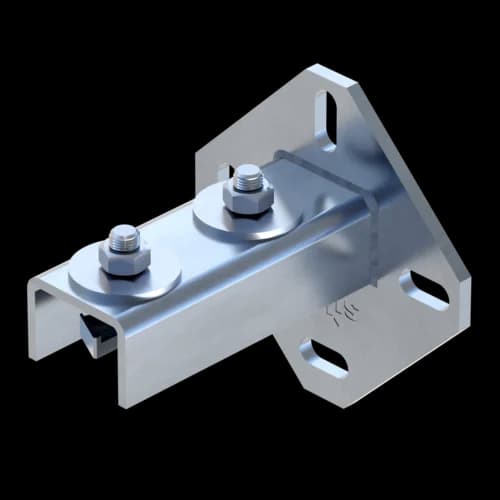

End Support WBD ss

Application

In combination with a channel, End Support WBD ss is particularly suitable

  • for setting up support structures attached to walls, floors and ceilings
  • as a base for frame structures

Installation

Normally, two anchors grouped opposite to each other and along the load axis are sufficient. Only in exceptional cases (e.g. high props in frameworks) four anchors are required.
Tightening torque 40 Nm.
Suitable for stainless steel channels with width 41 mm up to height ≤ 62 mm.

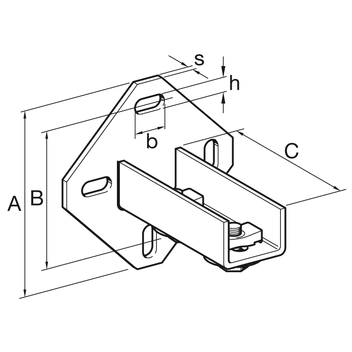

Technical Data

Type
Suitable for channel
A
[mm]
s
[mm]
B
[mm]
b
[mm]
h
[mm]
C
[mm]
ø
Screw
41/41-62 41/41 bis 41/62 135 6 100 25 11 125 M10

The permissible maximum vertical load for ceiling mounting structures fixed by way of at least one traversing bolt (class 8.8) amounts to 7.0 kN.

Material:
Stainless steel A4

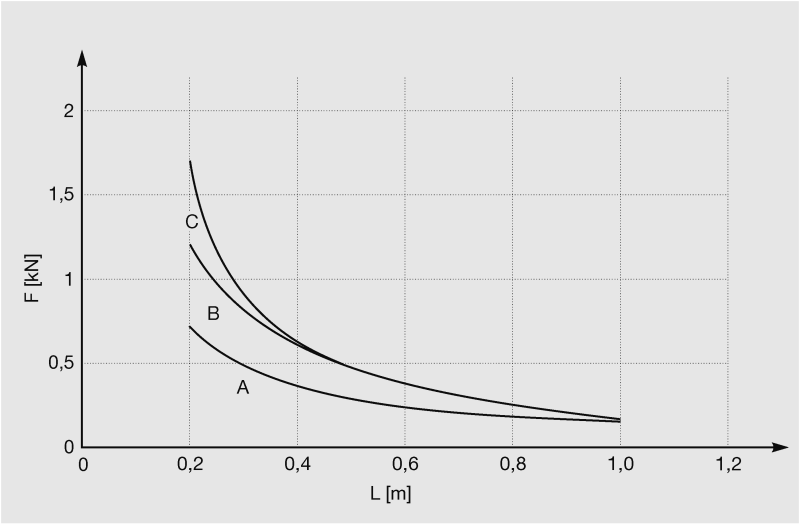

Working load for wall mounting with channel 41/41 and two anchors of the mentioned load class:


Restrictions
σperm ≤ 160 N/mm2
fperm ≤ L/100 for L > 300 mm
fperm ≤ 3 mm for L = 200 ... 300 mm
Anchor load classes
A = 1.5 kN
B = 2.5 kN
C = 3.5 kN

TypeW
[kg]
Quantity
[pack]
Part
number
41/41-621.1210 193631
