Application

Hammerset Anchor for multiple attachment in cracked and single attachment in non-cracked concrete.
Suitable for fixing pipelines, channels, etc. meeting the respective approval requirements. To be used in structural parts under dry indoor conditions, as well as outdoor constructions (including industrial ambiance and coastal areas) or damp locations provided no special aggressive conditions are given.

  • No special drill is required
  • Setting Tool for Drive Plug is to be used as setting tool for distance-controlled forced expansion
  • Suitable for put-before assembly

Installation

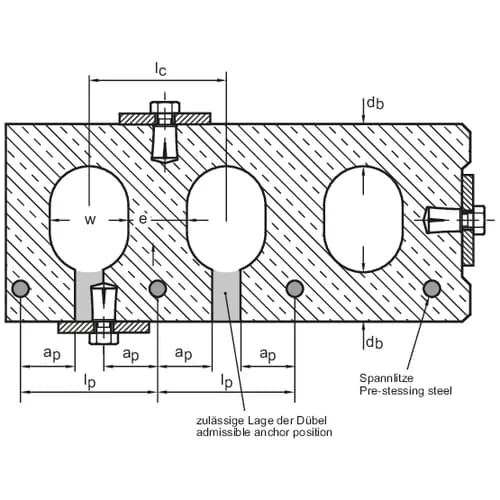

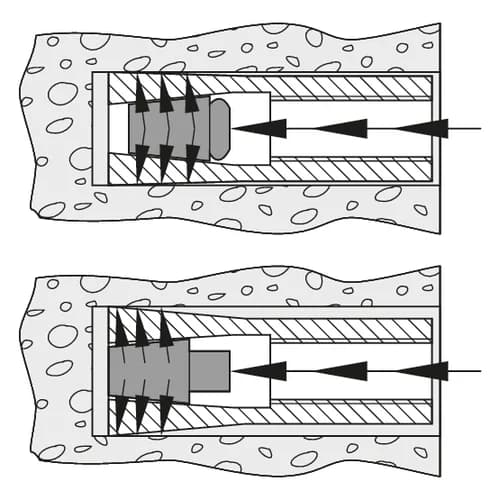

As setting tool the respective expansion cone for Drive plug is to be used.
The "intelligent" expansion cone facilitates the assembly with drill hole tolerances in the bore hole diameters or with different concrete.
Due to the controlled expansion the needed edge and centre distances are considerably reduced.

Technical Data

General installation data:

Anchor size
M8x30
M8x40
M10
M12
M16
Nominal dia. of drill d0 = [mm] 10 10 12 15 20
Depth of drill hole h0 = [mm] 30 40 40 50 65
Tightening torque when anchoring Tinst = [Nm] 8 8 15 35 60
Pass-through hole in component to be joined df ≤ [mm] 9 9 12 14 18
Thread length Lth [mm] 13 20 15 18 23
Minimum screw-in depth Lsdmin [mm] 9 9 11 13 18
Minimum thickness of component hmin [mm] 100 100 130 140 160

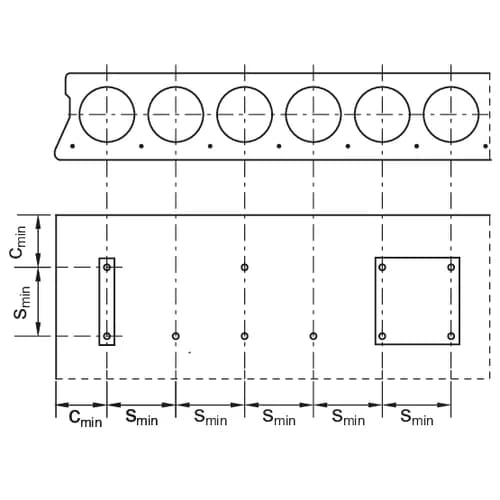

Min. centre distance smin [mm] 60 80 100 120 150
Min. edge distance cmin [mm] 95 95 135 165 200

Extract from the approval specifications ETA-05/0117 cracked concrete / multiple fixation of non-bearing systems:

Anchor size
M8x30
M8x40
M10
M12
Perm. load for single anchor C20/25-C50/60 [kN] 1.7 2.0 2.0 2.4
Perm. bending moment (A4-70) Mperm [Nm] 11.9 11.9 23.8 42.1
Characteristical centre distance scr [mm] 180 210 170 170
Characteristical edge distance ccr [mm] 90 105 85 85
Loads under fire exposure
Perm. load R30 perm. F [kN] 0.9 1.5 1.5 1.5
Perm. load R60 perm. F [kN] 0.9 1.5 1.5 1.5
Perm. load R90 perm. F [kN] 0.9 0.9 1.5 1.5
Perm. load R120 perm. F [kN] 0.5 0.5 1.0 1.2

Extract from approval specifications ETA-10/0257 non-cracked concrete:

Anchor size
M8x30
M8x40
M10
M12
M16
Perm. tensile load C20/25 [kN] 3.8 5.2 5.9 8.3 12.3
Lateral tension perm. V ≥ C20/25 [kN] 4.9 4.9 6.1 11.5 19.2
Bending moments perm. M [Nm] 11.9 11.9 23.8 42.1 106.7

The values of the mentioned approvals are valid and could be seen in their latest issue under www.sikla.com/service/downloads.

Material:
Stainless steel A4 (316)

Approvals / Conformity

For the multiple fixation of non-structural systems Sikla Approval ETA-10/0258 (M8-M12), for anchorage in non-cracked concrete Sikla Approval ETA-10/0257 (M8-M16), Fire Protection Certification, VdS-conform, FM-Approval ≥ M10

Drop-In Anchor AN/AN ES ETA 10/0258 PDF | 3.9 MB Drop-In Anchor AN / AN ES - ETA 10/0257 PDF | 2.4 MB FM - Sikla Anchors AN PDF | 260.1 KB

1) Liefertermin auf Anfrage – Ware wird auftragsbezogen beschafft.

TypeDrill hole ø x
depth [mm]
Thread ø x
length [mm]
W
[kg]
Quantity
[pack]
Part
number
M8 x 3010 x 30M8 x 130.01100 104906
M8 x 4010 x 40M8 x 200.01100 153593
M10 x 4012 x 40M10 x 150.02 50 104915
M12 x 50 1)15 x 50M12 x 180.04 50 104924
M16 x 65 1)20 x 65M16 x 230.10 25 104933
