Application

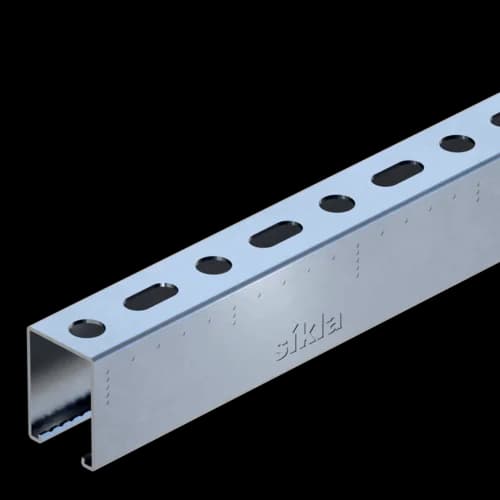

Element for easily and efficiently pre-assembling crossbars, wall brackets and supporting structures on construction sites or in workshops.

They can be used as guide and support channels for slide applications by inserting the Slide Element 41 ss inside the channel.

Scope of delivery

Available as single or double channels. Double channels are joined together by clinching.

Installation

All channels of the 41 series are serrated inside and provide numerous combination options with other stainless steel system components.

Technical Data

Material:
Stainless steel A4, group according to abZ Z-30.3-6 Annex 2

D = Double channel

Type
W/H/Th [mm]
Section modulus
[cm3 ]
Moment of inertia
[cm4 ]
Radius of gyration
[cm]
27/15/1.25
Wy : 0.27
Wz : 0.65
ly : 0.22
lz : 0.88
iy : 0.55
iz : 1.10
41/21/2.0
Wy : 0.82
Wz : 2.12
ly : 0.92
lz : 4.35
iy : 0.76
iz : 1.65
41/41/2.0
Wy : 2.43
Wz : 3.65
ly : 5.16
lz : 7.48
iy : 1.46
iz : 1.75
41/62/2.5
Wy : 5.54
Wz : 6.27
ly : 17.70
lz : 12.86
iy : 2.10
iz : 1.79

41/41/2.0 D
Wy : 7.16
Wz : 7.30
ly : 29.34
lz : 14.96
iy : 2.45
iz : 1.75
41/62/2.5 D
Wy : 17.38
Wz : 12.54
ly : 107.75
lz : 25.71
iy : 3.66
iz : 1.79

Type
W/H/Th [mm]
Cross section
A
[cm2 ]
Distance
e
[cm]
Max. point
carrying capacity
Fmax [kN]
Max. torsional
moment
Mq [Nm]
27/15/1.25 0.73 0.84 1.7 15.0
41/21/2.0 1.61 1.12 4.0 44.5
41/41/2.0 2.43 2.12 4.0 44.5
41/62/2.5 4.01 3.20 6.0 44.5

41/41/2.0 D 4.87 4.10 4.0 44.5
41/62/2.5 D 8.03 6.20 6.0 44.5

All values in both tables refer to slotted channels. Load tables are to be seen in chapter "Pressix CC 27 resp. CC 41".

TypeSteel gradeLength
[m]
Slot patternWeight
[kg/m]
Qty.
[m]
Part
number
27/15/1.25A4210.592 112912
41/21/2.0A4631.326 110595
41/41/2.0A4231.972 195802
41/41/2.0A4631.976 195796
41/62/2.5 A4633.136 173972

41/41/2.0 DA4633.946 195819
41/62/2.5 DA4636.276 174143
