Assembly Set MS 5P ss

Application

Element for connecting Beam Bracket TKO, Angled Beam Bracket SKO, End Support WBD or Pivot Joint GE F to a beam section.

Scope of delivery

Type

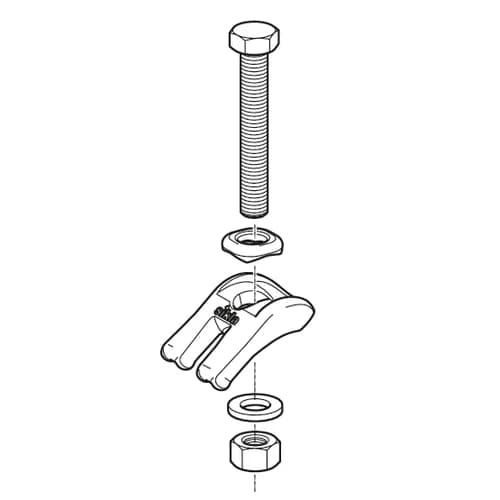

Beam Clip
[Anzahl]
Support plate
[Anzahl]
ss trimming *
[Anzahl]
M12 S 4 x M12 4 x M12 4 x M12 x 80
M12 S2 2 x M12 2 x M12 2 x M12 x 80
M16 S 4 x M16 4 x M16 4 x M16 x 100
M16 S2 2 x M16 2 x M16 2 x M16 x 100

* ss trimming consisting of: Hexagon bolt M12 or M16, 1 washers, 1 hexagon nut (polymer-lubricated)

Installation

1.
Position Beam Clip with the split end on beam section.
2.
Install support plate and ss trimming and tighten accordingly.

The support plate secures a rectangular assembly of the bolt and prevents its shifting or bending stress. In conjunction with the ss trimming a continuous and predictable preload force is guaranteed.

Technical Data

Type
Size range
[mm]
Tightening torque MA
[Nm] /
plus 90° revolution
Fy permitted
per Beam Clip
[kN]
Shear force load capacity Fz
per set = 4 Beam Clips
kN]
M12 S 1 - 30 60 / 90° 17.6 8.1 *
M16 S 4 - 40 140 / 90° 19.8 8.4 *

* The specified data relate to the worst case with flange thicknesses 30 mnm (M12) or 40 mm (M16) as well as a coefficient of adhesion µadhesion = 0,20
A possibly operating tensile force Fy isn't included.

Material:
Stainless steel A4
TypeW
[kg]
Quantity
[pack]
Part
number
M12 S1.1510 803709
M12 S20.6010 803711
M16 S2.2710 803710
M16 S21.1410 803801
