siFramo 80
U-Holder SB F 80
Application
Pre-assembled component to clamp Beam Section F 80 to the flange side of traditional steel sections.
Scope of delivery

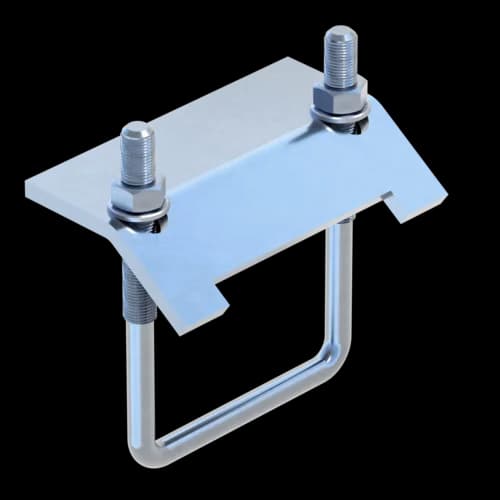

Type SB F 80-16:
Holder with thread M10
Plate
2 Hexagon nuts M10
2 Washers

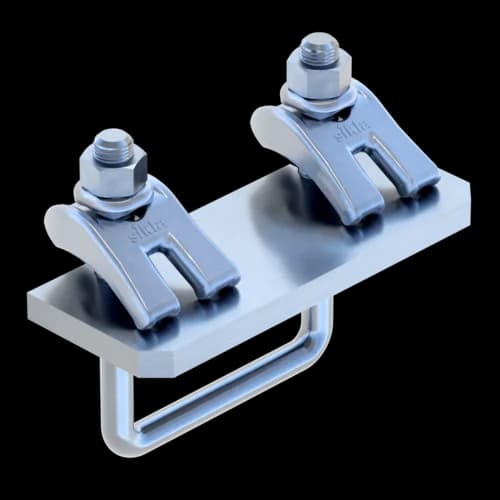

Type SB F 80-40:
Holder with thread M12
Plate
2 Beam Clips SPA 5P AU
2 Hexagon nuts M12

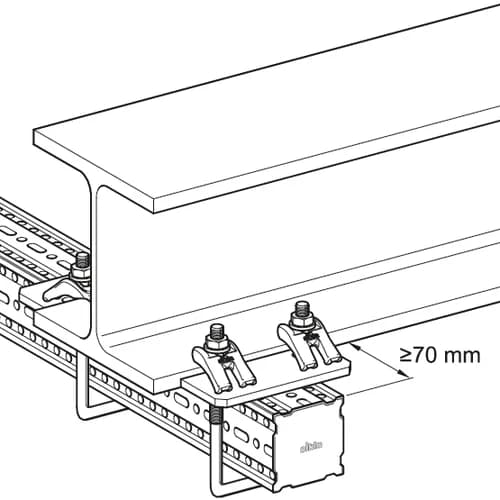

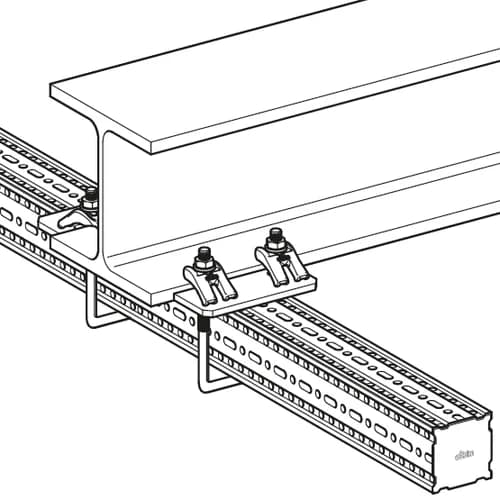

Installation
U-holder to be used in pairs.
Type 16 up to flange thickness 16 mm
Type 40 up to flange thickness 40 mm
Technical Data
| Type | Thread | Tightening torque [Nm] | Fz per U-Holder [kN] | Fy [kN] | My [kNm] | Mz [kNm] |
|---|---|---|---|---|---|---|
| SB F 80-16 | M10 | 40 | 9.5 | * | * | * |
| SB F 80-40 | M12 | 85 | 16 | * | * | * |
| SB F 80/30-16 | M10 | 40 | 9.5 | * | * | * |
| SB F 80/30-40 | M12 | 85 | 16 | * | * | * |
* Please compare the suitable type's dimensions by means of the Simotec user guideline to get the permissible lateral forces and torques.
| Material: | Steel, FK 8.8, HCP |
