siFramo 80
Slide Set GS F 1G
Application
Slide Set in solid construction for installation on top of siFramo Beam Sections TP F. 1/2" thread connection allows direct connection to pipe clamp Stabil I -1/2" by means of threaded tube without further adaption parts.
Installation
Installation on top of Beam Section TP F with two Self Forming Screws FLS F.
Technical Data
| Type | a [mm] | b [mm] | c [mm] | perm. load support [kN] | perm. load suspended [kN] |
|---|---|---|---|---|---|

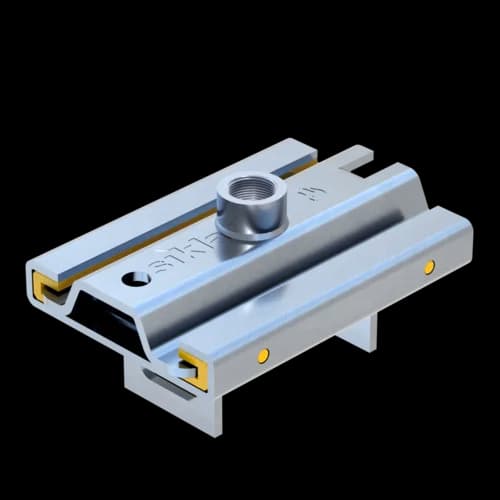

| GS F 80 1G | - | 102 | 80.5 | 17.0 | 5.4 |

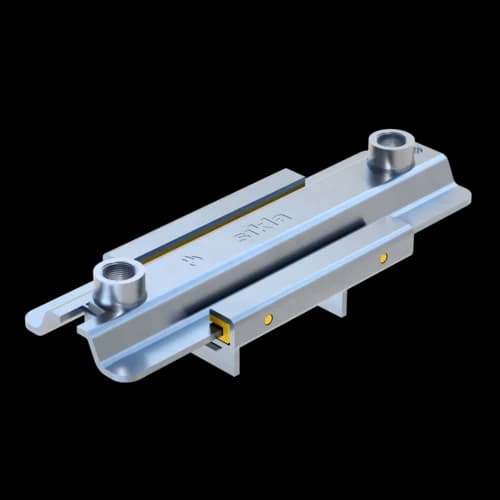

| GS F 80 1G2 | 210 | 102 | 80.5 | 12.0 | 8.4 |
The perm. loads have been determined by load tests following DIN EN 13480-3 annex J.
The pipe clamp and the possibly used 1/2" threaded tube have to be verified seperately.
| Type | max. lever [mm] | max. glide path s [mm] |
|---|---|---|
| GS F 80 1G | 200 | 100 |
| GS F 80 1G2 | 300 | 135 |
| Temperature range (permanent exposure): | 130°C |
| Static friction coefficient µ0: | 0,20 |
| Sliding friction coefficient µ: | 0,15 |
| Material: | |
| Metal components: | Steel, HCP |
| Slide bar: | Polyamide, glass fibre reinforced |
