siFramo 100

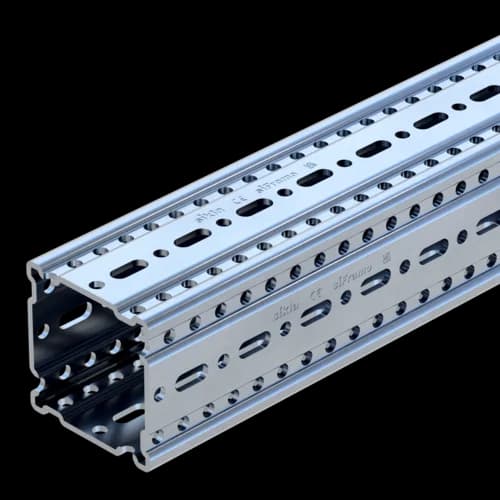

Beam Section TP F 100
Application
Galvanised hollow-box-section for fabrication of steel frames. Designed for both simple two-dimensional supports and complex volumetric arrangements. Holes designed to receive Self Forming Screw FLS in conjunction with the relevant component.
Technical Data
| Type | Section modulus [cm3 ] | Moment of inertia [cm4 ] | Radius of inertia [cm] | Torsional moment lt [cm 4 ] | Cross section A [cm2 ] |
|---|---|---|---|---|---|
| TP F 100 | Wy: 32.77 Wz: 32.77 | ly: 179.85 lz: 179.85 | iy: 4.80 iz: 4.80 | 135.00 | 7.75 |

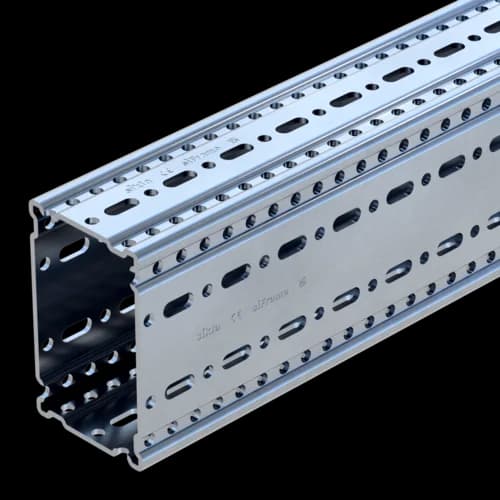

| TP F 100/160 | Wy: 68.12 Wz: 46.92 | ly: 559.42 lz: 280.34 | iy: 6.16 iz: 4.36 | 193.00 | 14.50 |
Mechanical properties shown above take into account perforations.
The specific values are effective values established by tests, geometrical quantities (analytically determined) can be significantly higher.
| Material: | Steel, HCP |
Simotec Static Guideline PDF | 10.7 MB
Approvals / Conformity
CE mark (Declaration of performance see www.sikla.com/service/downloads)
Declaration of performance Beam Section TP F PDF | 212.1 KB
