Pressix CC 41 - Assembly System

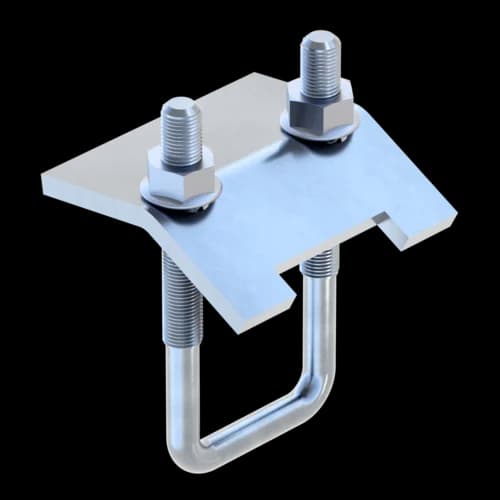

U-Holder SB 41
Application

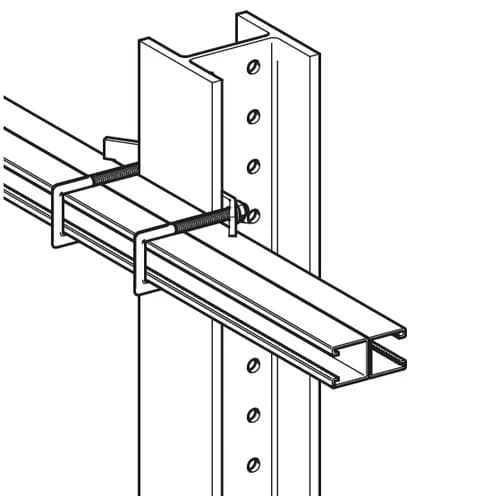

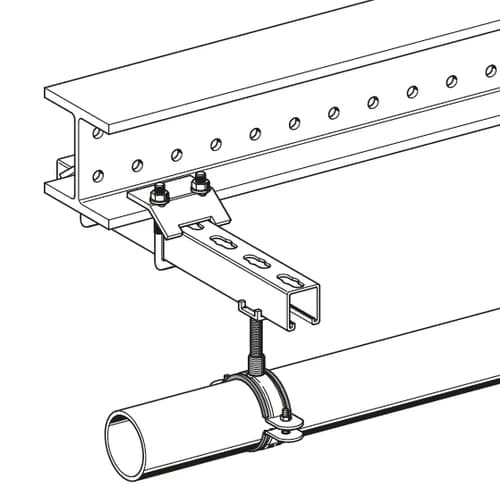

Clamping element for bi-lateral attachment of crossbars to steel beams, independent from the channel's opening.
Installation
To be used in pairs.
Length calculation = Beam/Girder flange thickness + min. 2 x 50 mm overhang
Technical Data
| Type | Max. perm. load tension | Tightening torque |
|---|---|---|
| M8 | 3.5 kN per U-Holder | 20 Nm |
| M10 | 5.0 kN per U-Holder | 30 Nm |
| Material: | Steel, electro-galvanised |
