Pressix CC 41 - Assembly System

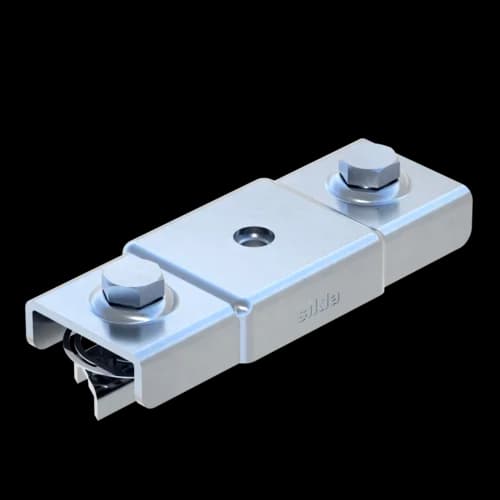

Suspension Holding Bracket IR-RA
![](/sixcms/media.php/443/thumbnails/IR_RA_10221.tif.65491.png)
![](/sixcms/media.php/443/thumbnails/IR_RA_10221_M.tif.65499.png)
![](/sixcms/media.php/443/thumbnails/IR_RA_10221_AW01.tif.65507.png)
Application

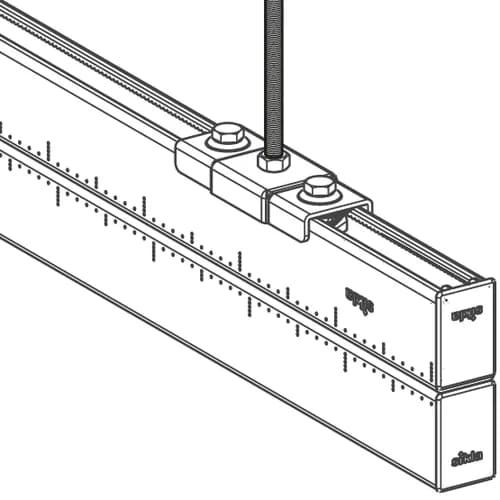

The Suspension Holding Bracket IR-RA is used to fix the ceiling grid or to fix Channels MS 41 by means of a threaded rod to the building structure. The two connecting points allow a high load transfer. The Pressix CC-components guarantee a simple and quick assembly.
Technical Data
Max. permissible load per Suspension Holding Bracket: | 12 kN |
Tightening torque: | 15 Nm |
Material: | Steel, galvanised |
