Pressix CC 41 - Assembly System

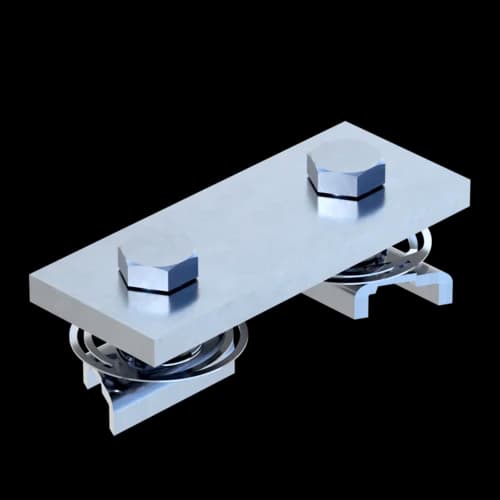

Flat Fitting ECO CC
Application
Pre-assembled connecting element for frame structures, optimised for linking channels of the 41 series.
- Locks automatically when being put in place, and supports its own weight.
- Secure, form-locking, non-positive connection. Completely pre-assembled with serrated CC nut and clamping screw M10. High stiffness.
Technical Data
| Working load: | Fperm = 2.0 kN / per Fitting |
| Torque: | 40 Nm |
| Material: | Steel, electro-galvanised |
