Pressix CC 41 - Assembly System

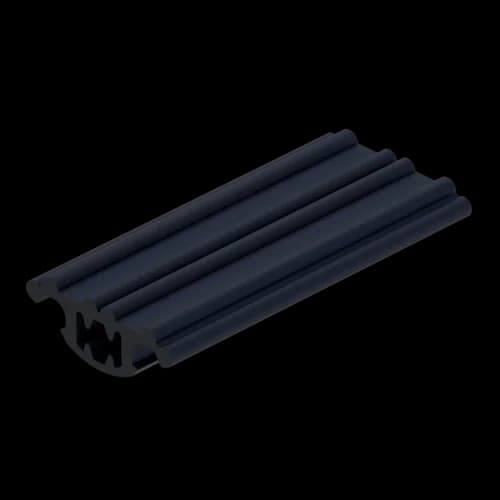

Channel Lining SAL 41

Application

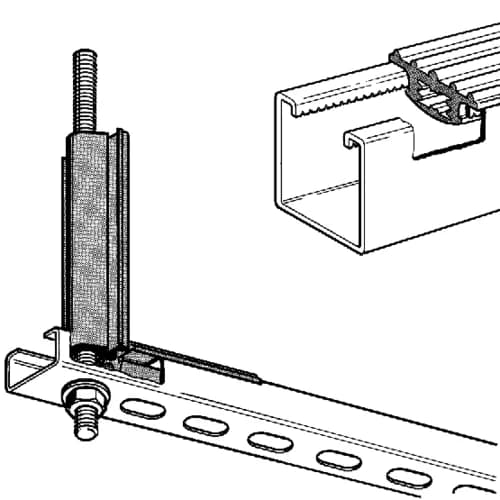

Sound Absorption Lining for inserting into Sikla Channels or fitting around threaded rods; mainly for use in ducting systems, also for sound proof installations as per DIN 4109.

Scope of delivery

Rolls of 30 m or pieces of 50 mm each.

Technical Data

Material:
SBR/EPDM, black
Temperature range:
-40°C up to +110°C
Fire resistance:
B2 according to DIN 4102, non-dripping
Hardness:
45°+/-5° Shore
TypeFor Sikla
Channel
opening
Thread
connection
Length
of piece
[mm]
Roll
[m]
W
[kg]
Quantity
[pack]
Part
number
4122 mmM8/M10-3014.271 Rolle 101189
41/L5022 mmM8/M1050-0.02100 101204
