Application

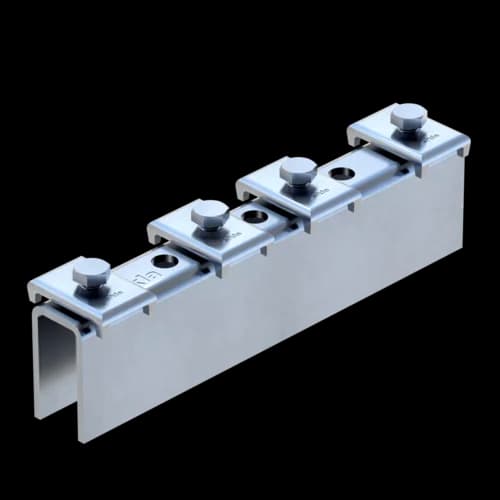

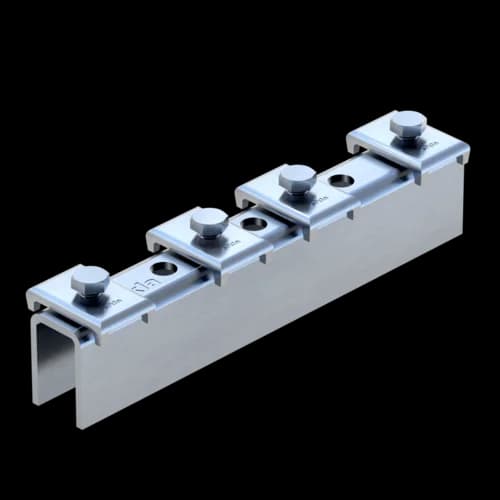

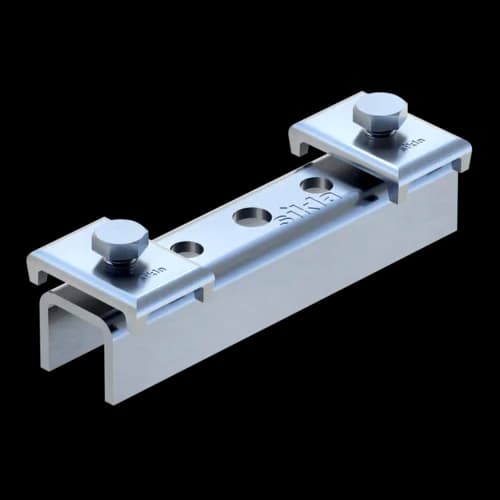

Channel Connector for easy and safe extension or joining of Sikla Channels on site or for pre-assembly in workshops.

Scope of delivery

With Holding Brackets HK 41 and hexagon nuts (supplied loose).

Installation

For extension of double channels, see advice brochure "Installation Guidelines".

Technical Data

Material:
Malleable iron, electro-galvanised
TypeFor channelOverall length
[mm]
W
[kg]
Quantity
[pack]
Part
number
SK 41/21-3141/21/1.5 - 41/31/2.01600.4010 177599
SK 41/41-4541/41/2.0 - 41/45/2.51600.5910 155115
SK 41/5241/52/2.52601.1010 177608
SK 41/6241/62/2.52601.3510 155124
SK 41-75/6541-75/65/3.02601.4110 177617
SK 41-75/7541-75/75/3.02601.6110 177626
