Pressix CC 41 - Assembly System

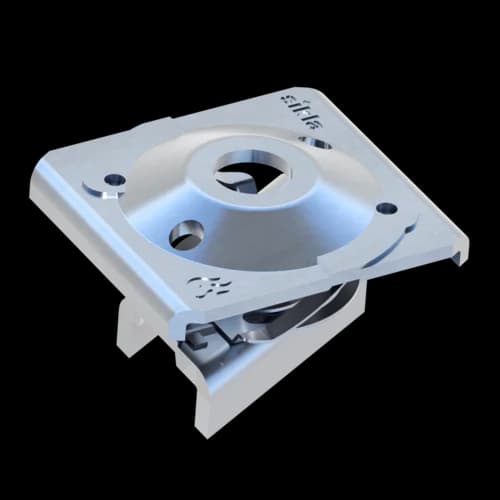

Block PBH 41
Application
Quick-installation element for efficiently mounting pipe clamps and other components to all Sikla Channels of the 41 series, suitable for double channels also.
- Time saving due to pre-assembled block - replaces 2 individual parts.
- Due to the force of the integrated spring, self-supporting if used for vertical channels; can however still be easily moved along the channel by hand.
- To be combined with Pressix Rods PNS, Grub Screws, Bolts and other threaded elements.
Scope of delivery
Pre-assembled
Installation
Insert the Block into the channel; by turning the Holding Bracket by 90° to the right, the Channel Nut locks into the stop position; then tighten nut or other connecting part - the job is done!
Technical Data
| Min. material thickness Channel MS 41 [mm] | FZ * [kN] | FQ * [kN] M8 | FQ * [kN] M10/M12 |
|---|---|---|---|
| 1.5 | 2.0 | 2.0 | 2.0 |
| 2.0 | 4.0 | 2.0 | 2.5 |
| 2.5 | 6.0 | 2.0 | 2.5 |
| 3.0 | 7.2 | 2.0 | 2.5 |
Perm. load FZ * under stress of fire
| Min. material thickness Channel MS 41 [mm] | FWD 30 [N] | FWD 60 [N] | FWD 90 [N] | FWD 120 [N] |
|---|---|---|---|---|
| 2.0 | ≤ 850 | ≤ 430 | ≤ 250 | |
| ≥ 2.5 | ≤ 1000 | ≤ 540 | ≤ 350 | ≤ 250 |
FZ = max. permissible tensile load
FQ = max. permissible lateral force against displacing
* The load capacity of the connecting parts used is to be considered. This applies particularly under stress of fire.
| Material: | Steel, electro-galvanised |
