Pressix CC 27 - Assembly System

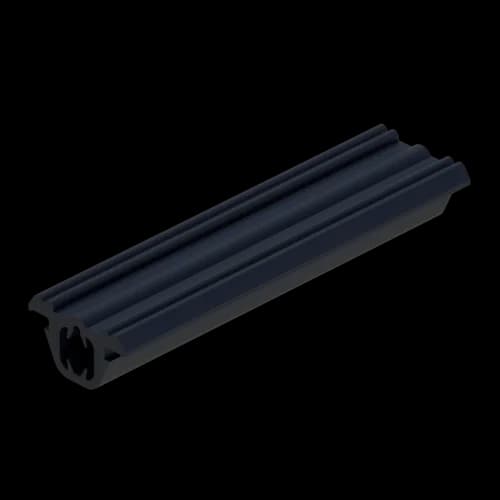

Channel Lining SAL 27

Application

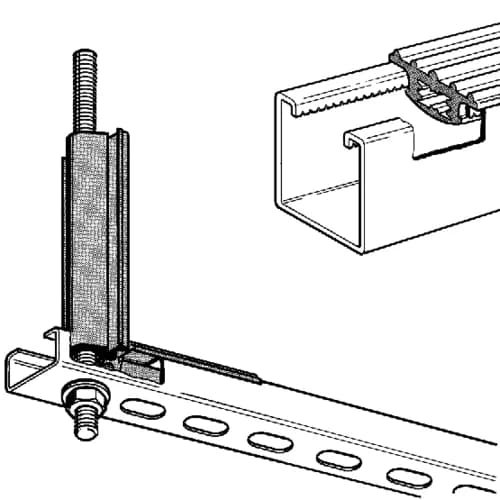

Sound absorption lining for inserting into Sikla Channels MS 27 or fitting around threaded rods; mainly for use in ducting systems, also for sound proof installations as per DIN 4109.

Scope of delivery

Rolls of 30 m or pieces of 100 mm each.

Technical Data

Material:
SBR/EPDM, black
Temperature range:
-50°C up to +110°C
Fire resistance:
B2 according to DIN 4102, non-dripping
Hardness:
50°+/-5° Shore

TypeThread
connection
Length
of piece
[mm]
Roll
[m]
W
[kg]
Quantity
[pack]
Part
number
27M8/M10-306.001 Rolle 195963
27/L100M8/M10100-0.01100 195970
