Type Q

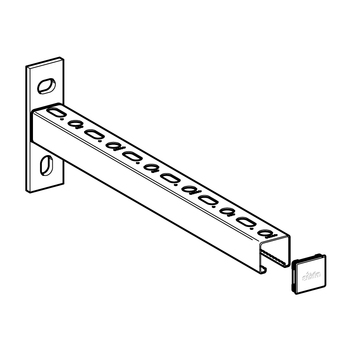

Cantilever Bracket AK 27

Group: 2754

Recommended for single-arm wall suspension or fixing to other building structures

Select a Type

Overview of Types
General Information
Installation
Documents

Overview of Types

General Information

Recommended for single-armed wall suspension or fixing to other building structures.

Certification

Technical specifications

Material base body	steel
Surface	electro galvanized (Fe//Zn)
Corossion class	C2

Load range

Type	-M_X,perm.	M_X,perm.	-M_Y,perm.	M_Y,perm.
AK 27/25 - 200	0,02 kNm	0,02 kNm	0,08 kNm	0,08 kNm
AK 27/25 - 250	0,02 kNm	0,02 kNm	0,08 kNm	0,08 kNm
AK 27/25 - 300	0,02 kNm	0,02 kNm	0,08 kNm	0,08 kNm
AK 27/25 - 500	0,02 kNm	0,02 kNm	0,08 kNm	0,08 kNm
AK 27/25 - 700	0,02 kNm	0,02 kNm	0,08 kNm	0,08 kNm
AK 27/25 Q - 300	0,02 kNm	0,02 kNm	-	-
AK 27/37 - 300	0,02 kNm	0,02 kNm	0,12 kNm	0,12 kNm
AK 27/37 - 500	0,02 kNm	0,02 kNm	0,12 kNm	0,12 kNm
AK 27/37 - 700	0,02 kNm	0,02 kNm	0,12 kNm	0,12 kNm
AK 27/37 - 800	0,02 kNm	0,02 kNm	0,12 kNm	0,12 kNm

Software

This product is available in the following software.

Installation

For cantilever projections in excess of 500mm we recommend a vertical brace and for lateral forces on the cantilever, use a lateral brace connected via Fixing Bracket MW S 45/30/90.

Documents

Datasheets / Loads

Anchor Loads - Cantilever Bracket AK 41
PDF (0.18MB)
Anchor Loads - Cantilever Bracket AK 27
PDF (0.12MB)
