Quick-installation element for efficient mounting of pipe clamps and other components to Channels MS 27.

  • Time-saving due to a pre-assembled Blockset consisting of 4 individual parts.
  • Easy height adjustment within the channel.
  • Retains position in horizontal and vertical channels during locational adjustment. But still can be moved easily and freely along the channel as required.
  • Grooved rod, prevents unintended unscrewing.
  • Easy cutting of the grooved rod - cutting grooves every 10 mm using Rod Cutter PBC 1.

Scope of delivery

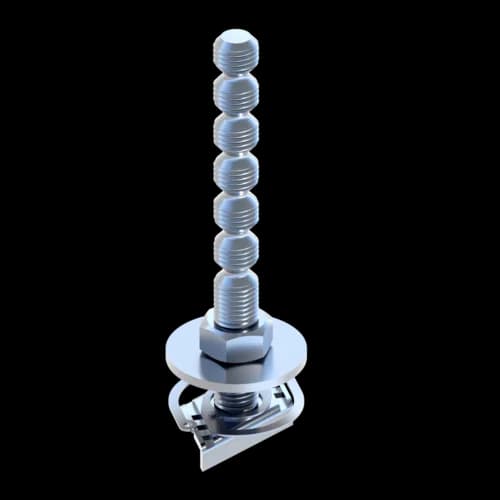

Completely pre-assembled (block with holding bracket, grooved rod and nut).

Installation

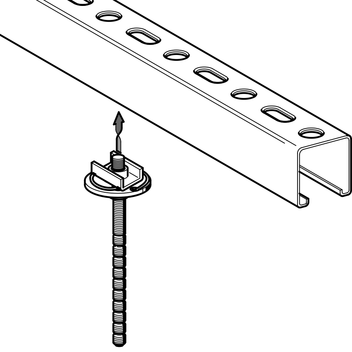

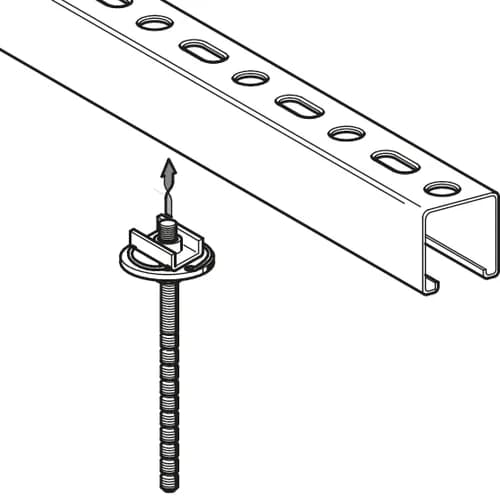

Insert the Blockset into the channel, then tighten the nut to 10 Nm - That's it!

Technical Data

Fz =
1,5 kN
Fx =
0,8 kN
Fy =

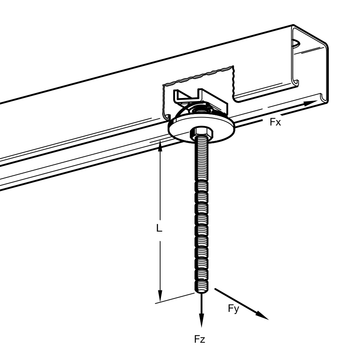

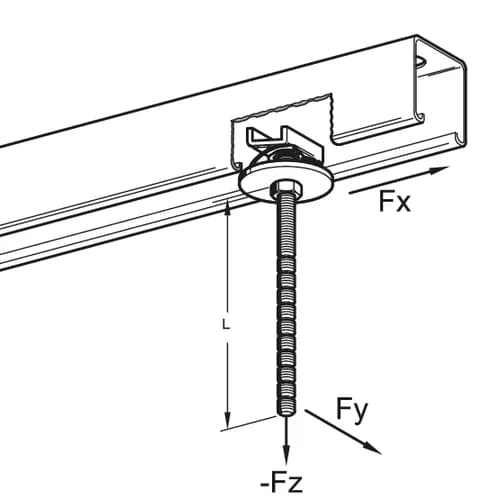

Permissible lateral force at the end of the grooved rod

Material:
Steel, electro-galvanised
TypeL
[mm]
Fy
[N]
W
[kg]
Quantity
[pack]
Part
number
M8 x 3535750.03100 195888
M8 x 7575350.05100 195895
M8 x 125125200.0650 195901
M8 x 175175-0.0850 195918
M8 x 275275-0.1150 195925
