Type M12
Type M8
Pipe Loop RSL N HCP
Group: 1815
For pipeline installations of fixed fire entinguishing systems
Mainly used for sprinkler system
Overview of Types
General Information
For pipeline installations of fixed fire entinguishing systems, mainly used for Sprinkler Systems.
Certification
VdS-Approval G4850025; FM-Approval
Technical specifications
Material base body | steel |
Material connecting element | steel |
Surface | HCP |
Corossion class | C4 |
Load range
Type | -VZ,perm. |

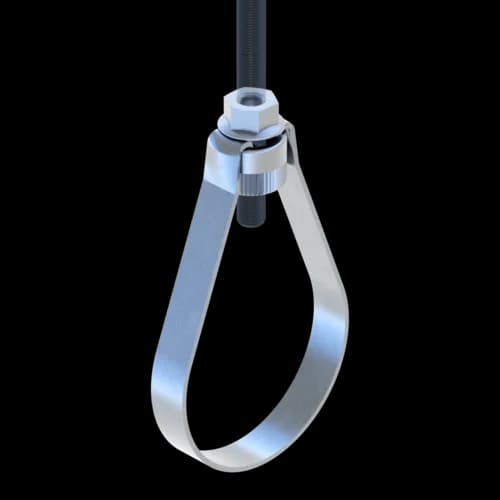

RSL N VDS M8 26,9MM (3/4'') HCP | 2,00 kN |
RSL N M10 26,9MM (3/4'') HCP | 2,00 kN |
RSL N VDS M8 33,7MM (1'') HCP | 2,00 kN |
RSL N M10 33,7MM (1'') HCP | 2,00 kN |
RSL N M10 42,4MM (1 1/4'') HCP | 2,00 kN |
RSL N VDS M8 42,4MM (1 1/4'') HCP | 2,00 kN |
RSL N VDS M8 48,3MM (1 1/2'') HCP | 2,00 kN |
RSL N M10 48,3MM (1 1/2'') HCP | 2,00 kN |
RSL N M10 60,3MM (2'') HCP | 2,00 kN |
RSL N VDS M8 60,3MM (2'') HCP | 2,00 kN |
RSL N M10 76,1MM (2 1/2'') HCP | 3,50 kN |
RSL N M10 88,9MM (3'') HCP | 3,50 kN |
RSL N M10 108MM HCP | 3,50 kN |
RSL N M10 114MM (4'') HCP | 3,50 kN |
RSL N M12 133MM HCP | 5,00 kN |
RSL N M12 139MM (5'') HCP | 5,00 kN |
RSL N M12 159MM HCP | 5,00 kN |
RSL N M12 168MM (6'') HCP | 5,00 kN |
RSL N M16 219MM (8'') HCP | 8,50 kN |
Software
This product is available in the following software.
Documents
- VdS Approval - Sikla Pipe Loop RSL N - G4850025
PDF (6.23MB)
