High Corrosion Protected Products

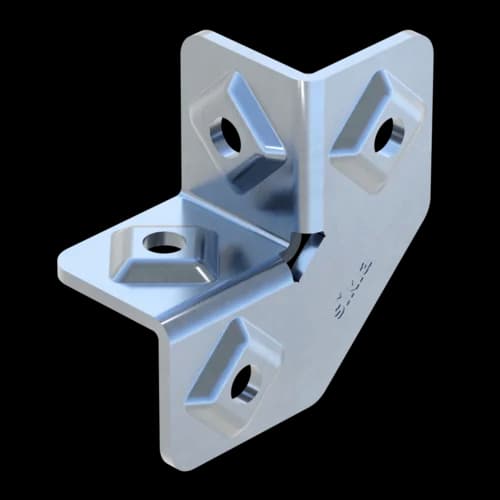

Corner Bracket EW 41-1 HCP

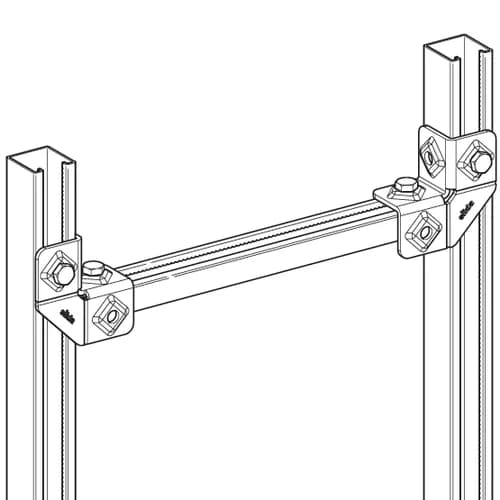

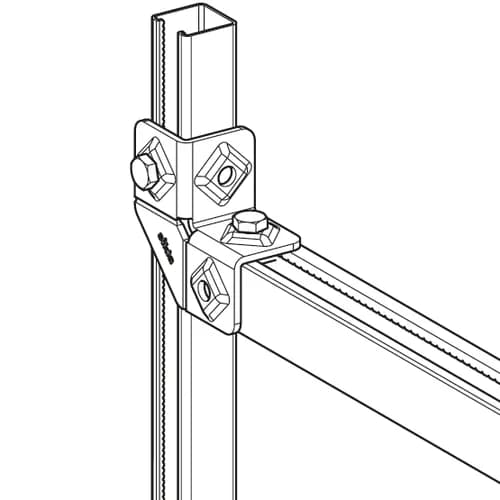

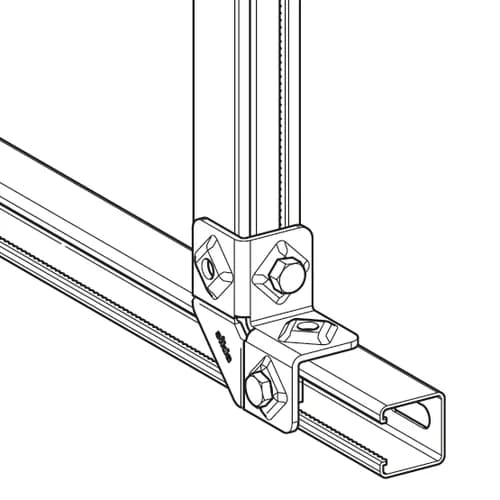

Application

Connecting element for frame structures with channels of the 41 series.
Depending on the application the direction of the channel opening can be
freely choosen.

Installation

To be used in pairs.

Technical Data

Max. perm. working load:
5.0 kN centre load per crossbar fixed with 2 Corner Brackets EW
41-1
Tightening torque:
40 Nm
Material:
Steel, HCP
TypeW
[kg]
Quantity
[pack]
Part
number
EW 41-10.2825 117351
