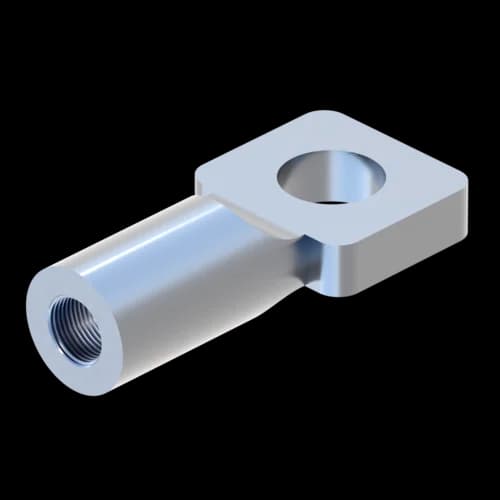

Link Eye SCB

Group:

1301

Product as PDF file

Technical Data

Satifies the VdS standards.

Material:

Cold-worked steel, electro-galvanised

Type	A [mm]	B [mm]	C [mm]	s [mm]	d [mm]	Thread [mm]	W [kg]	Quantity [pack]	Part number
M8	46.5	35.5	22.0	5.5	11.0	12.0	0.03	100	124221
M10	50.5	39.5	22.0	6.5	12.0	15.0	0.04	100	124203
M12	56.1	43.5	23.0	7.5	13.0	21.0	0.10	100	150916
