Brackets

Mounting Plate GPL

Application

For wall, ceiling and floor installation of mounting elements in M&E services.

Technical Data

Permissible anchor values may restrict the application.

Type
Working load (tension)
[kN]
Max. perm. bending moment*
[Nm]
Max. lever arm
[mm]
Welding
method
Normal M8 1.5 8.8 150 R

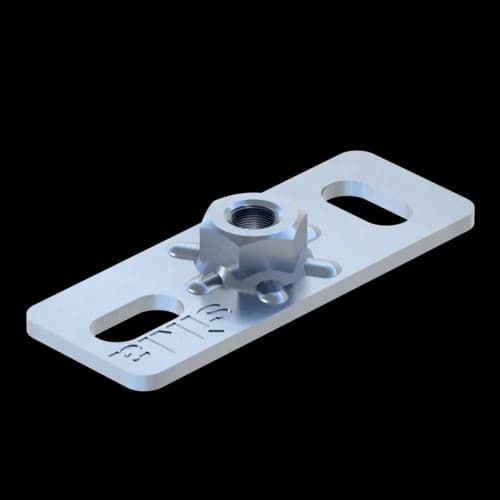

Normal M10 / M10 RL 1.5 17.2 200 R
Normal 2G M8/M10 1.5 M8: 8.8
M10: 17.2
M8: 150
M10: 200
R

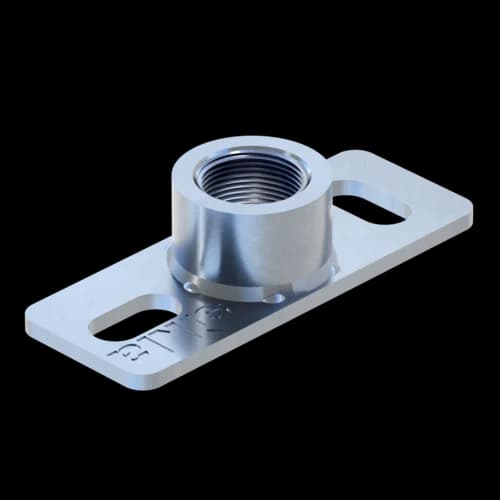

Normal R 1/2" 1.5 25.0 300 R
Stabil M10 4.0 17.2 200 R
Stabil M12 5.0 29.6 300 R
Stabil M16 8.5 70.3 300 M

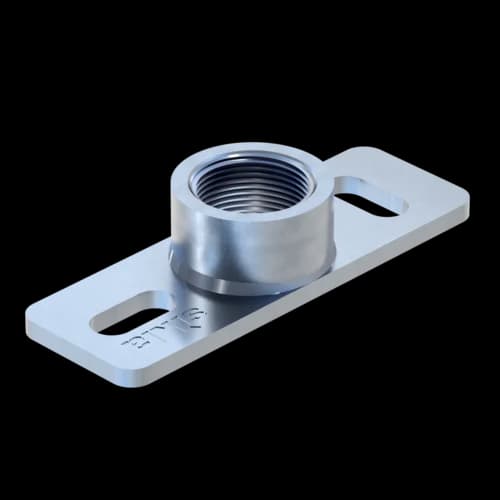

Stabil R 1/2" 8.5 95.0 350 M
Stabil R 3/4" 8.5 180.0 450 M
Stabil R 1" 8.5 350.0 500 M

R = resistance welding
M = slot welding

*
Limitation caused by the Mounting Plate or the loading capacity of the grub screw or of the threaded tube.
σperm ≤ 160 N/mm2 fperm < 5 mm

Material:
Steel, electro-galvanised
TypeDimension
L x W x Th
[mm]
Elongated hole
d x a
[mm]
Centre
distance l
[mm]
W
[kg]
Quantity
[pack]
Part
number
Normal M8 80 x 30 x 3 9 x 16540.0550 107501
Normal M10 80 x 30 x 3 9 x 16540.0650 138361
Normal 2G M8/M1080 x 30 x 39 x 16540.06100 113016

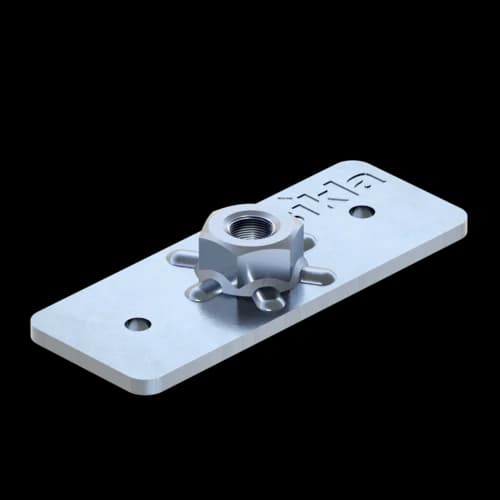

Normal M10 RL80 x 30 x 3ø 4.5540.0650 199077
Normal R 1/2"80 x 30 x 3 9 x 16540.0850 138501
Stabil M10120 x 40 x 411 x 25800.1450 138343
Stabil M12120 x 40 x 411 x 25800.1550 107556
Stabil M16120 x 40 x 511 x 25800.1950 138352
Stabil R 1/2"120 x 40 x 511 x 25800.2050 138529
Stabil R 3/4"120 x 40 x 511 x 25800.2050 138538
Stabil R 1"120 x 40 x 511 x 25800.2250 107592
